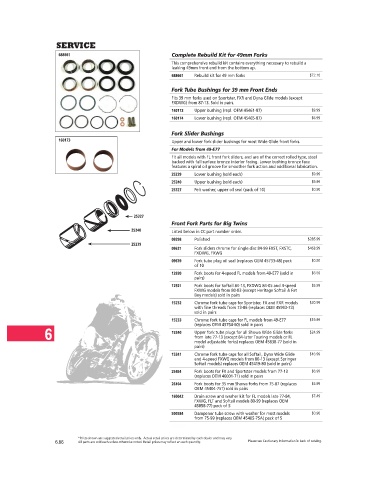

Page 536 - Custom Chrome Catalog

SERVICE
688661 Complete Rebuild Kit for 49mm Forks
This comprehensive rebuild kit contains everything necessary to rebuild a
leaking 49mm front end from the bottom up.
688661 Rebuild kit for 49 mm forks $72.10

Fork Tube Bushings for 39 mm Front Ends
Fits 39 mm forks used on Sportster, FXR and Dyna Glide models (except
FXDWG) from 87-13. Sold in pairs.
160173 Upper bushing (repl. OEM 45461-87) $9.99
160174 Lower bushing (repl. OEM 45465-87) $6.99
M160173
Fork Slider Bushings
160173 Upper and lower fork slider bushings for most Wide Glide front forks.
For Models from 49-E77
Fit all models with FL front fork sliders, and are of the correct rolled type, steel
backed with full surface bronze interior facing. Lower bushing bronze face
features a spiral oil groove for smoother fork action and additional lubrication.
25239 Lower bushing (sold each) $9.99
25240 Upper bushing (sold each) $9.99
25327 Felt washer, upper oil seal (pack of 10) $0.90
M25239

25327
Front Fork Parts for Big Twins
25240 Listed below in CC part number order.
09298 Polished $285.99
25239
09621 Fork sliders chrome for single disc 84-99 FXST, FXSTC, $463.99
FXDWG, FXWG
09639 Fork tube plug oil seal (replaces OEM 45733-48) pack $0.50
of 10
12920 Fork boots for 4-speed FL models from 49-E77 (sold in $6.59
pairs)
12921 Fork boots for Softail 84-13, FXDWG 84-05 and 4-speed $5.99
FXWG models from 80-83 (except Heritage Softail & Fat
Boy models) sold in pairs
15232 Chrome fork tube caps for Sportster, FX and FXR models $20.99
with fine threads from 73-86 (replaces OEM 45993-73)
sold in pairs
15233 Chrome fork tube caps for FL models from 49-E77 $19.99
(replaces OEM 45754-60) sold in pairs
6 15240 Upper fork tube plugs for all Showa Wide Glide forks $24.99
from late 77-13 (except 84-later Touring models or FL
model adjustable forks) replaces OEM 45838-77 (sold in
pairs)
15241 Chrome fork tube caps for all Softail, Dyna Wide Glide $16.99
and 4-speed FXWG models from 80-13 (except Springer
Softail models) replaces OEM 45419-80 (sold in pairs)
25454 Fork boots for FX and Sportster models from 77-13 $6.99
(replaces OEM 46001-71) sold in pairs
26104 Fork boots for 35 mm Showa forks from 75-87 (replaces $5.99
OEM 45404-75T) sold in pairs
160042 Drain screw and washer kit for FL models late 77-84, $7.49
FXWG, FLT and Softail models 80-99 (replaces OEM
45858-77) pack of 5
500584 Dampener tube screw with washer for most models $0.90
from 75-99 (replaces OEM 45405-75A) pack of 5
M09285

*Prices shown are suggested retail prices only. Actual retail prices are determined by each dealer and may vary.
6.66 All parts are sold each unless otherwise noted. Retail prices may reflect an each quantity. Please see Cautionary Information in back of catalog.
