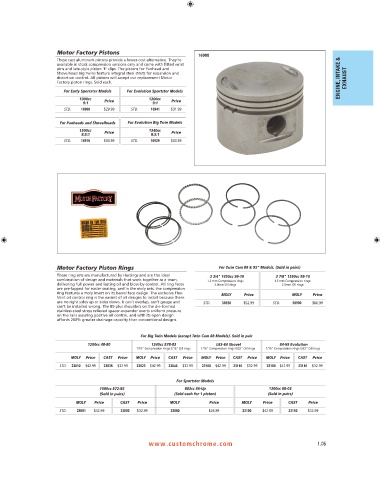

Page 11 - Custom Chrome Catalog

Motor Factory Pistons
16908
These cast aluminum pistons provide a lower-cost alternative. They’re
available in stock compression versions only and come with fitted wrist
pins and late-style piston ‘E’ clips. The pistons for Panhead and
Shovelhead Big Twins feature integral steel struts for expansion and
distortion control. All pistons will accept our replacement Motor ENGINE, INTAKE & EXHAUST
Factory piston rings. Sold each.
For Early Sportster Models For Evolution Sportster Models
1000cc Price 1200cc Price
9:1 9:1
STD. 16908 $29.99 STD. 16941 $31.99

For Panheads and Shovelheads For Evolution Big Twin Models
1200cc Price 1340cc Price

8:5:1 8:5:1
STD. 16916 $30.99 STD. 16929 $30.99

Motor Factory Piston Rings For Twin Cam 88 & 95“ Models. (Sold in pairs)
These ring sets are manufactured by Hastings and are the ideal 3 3/4" 1450cc 99-10 3 7/8" 1550cc 99-10
combination of design and materials that work together as a team, 1.5 mm Compression rings 1.5 mm Compression rings
delivering full power and lasting oil and blow-by control. All ring faces 3.0mm Oil rings 2.5mm Oil rings
are pre-lapped for easier seating, and in the moly sets, the compression

ring features a moly insert on its barrel face design. The exclusive Flex- MOLY Price MOLY Price
Vent oil control ring is the easiest of all designs to install because there
are no right sides up or sides down. It can’t overlap, can’t gouge and STD. 58920 $52.99 STD. 58900 $66.99
can’t be installed wrong. The 80-plus shoulders on the die-formed
stainless-steel stress relieved spacer-expander exerts uniform pressure
on the rails assuring positive oil control, and with its open design
affords 200% greater drainage capacity than conventional designs.

For Big Twin Models (except Twin Cam 88 Models). Sold in pair
1200cc 48-80 1340cc E78-83 L83-84 Shovel 84-99 Evolution
1/16" Compression rings 3/16" Oil rings 1/16" Compression rings 5/32" Oil rings 1/16" Compression rings 5/32" Oil rings
MOLY Price CAST Price MOLY Price CAST Price MOLY Price CAST Price MOLY Price CAST Price
STD. 23010 $42.99 23038 $32.99 23023 $42.99 23046 $32.99 23100 $42.99 23110 $32.99 23100 $42.99 23110 $32.99

For Sportster Models
1000cc E72-85 883cc 86-Up 1200cc 88-03
(Sold in pairs) (Sold each for 1 piston) (Sold in pairs)
MOLY Price CAST Price MOLY Price MOLY Price CAST Price
STD. 23001 $42.99 23030 $32.99 23080 $26.99 23100 $42.99 23110 $32.99
