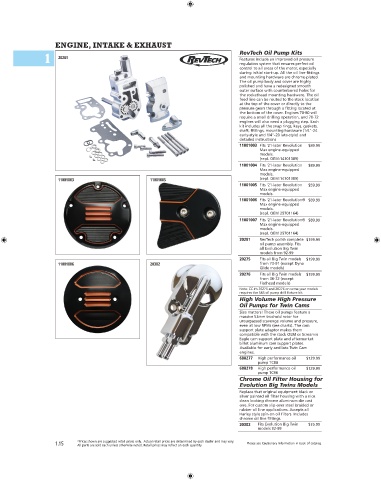

Page 20 - Custom Chrome Catalog

ENGINE, INTAKE & EXHAUST
RevTech Oil Pump Kits
1 20281 Features include an improved oil pressure
regulation system that ensures perfect oil
control to all areas of the motor, especially
during initial start-up. All the oil line fittings
and mounting hardware are chrome-plated.
The oil pump body and cover are highly
polished and have a redesigned smooth
outer surface with counterbored holes for
the sockethead mounting hardware. The oil
feed line can be routed to the stock location
at the top of the cover or directly to the
pressure gears through a fitting located at
the bottom of the cover. Engines 70-80 will
require a small drilling operation, and 70-72
engines will also need a plugging step. Each
kit includes all the snap rings, keys, gaskets,
shaft, fittings, mounting hardware (1/4"-24
early-style and 1/4"-20 late-style) and
detailed instructions
11001003 Fits '21-later Revolution $89.99
Max engine-equipped
models.
(repl. OEM:14101389)
11001004 Fits '21-later Revolution $89.99
Max engine-equipped
models.
11001003 11001005 (repl. OEM:14101389)
11001005 Fits '21-later Revolution $59.99
Max engine-equipped
models.
11001006 Fits '21-later Revolution® $89.99
Max engine-equipped
models.
(repl. OEM 25701164)
11001007 Fits '21-later Revolution® $89.99
Max engine-equipped
models.
(repl. OEM 25701164)
20281 RevTech polish complete $199.99
oil pump assembly. Fits
all Evolution Big Twin
models from 92-99
20275 Fits all Big Twin models $199.99
11001006 20302 from 73-91 (except Dyna
Glide models)
20276 Fits all Big Twin models $199.99
from 36-72 (except
Flathead models)
Note: CC #’s 20275 and 20276 on some year models
requires the S&S oil pump drill fixture kit.
High Volume High Pressure
Oil Pumps for Twin Cams
Size matters! These oil pumps feature a
massive 53mm trochoid rotor for
unsurpassed scavenge volume and pressure,
even at low RPMs (see charts). The cam
support plate adaptor makes them
compatible with the stock OEM or Screamin
Eagle cam support plate and aftermarket
billet aluminum cam support plates.
Available for early and late Twin Cam
engines.
688277 High performance oil $129.99
pump TC88
688278 High performance oil $129.99
pump TC96
Chrome Oil Filter Housing for
Evolution Big Twins Models
Replace that original equipment black or
silver painted oil filter housing with a nice
clean looking chrome aluminum die cast
M688277
one. For custom slip-over steel braided or
rubber oil line applications. Accepts all
Harley style spin-on oil filters. Includes
chrome oil line fittings.
20302 Fits Evolution Big Twin $35.99
models 92-99

1.15 *Prices shown are suggested retail prices only. Actual retail prices are determined by each dealer and may vary. Please see Cautionary Information in back of catalog.
All parts are sold each unless otherwise noted. Retail prices may reflect an each quantity.
