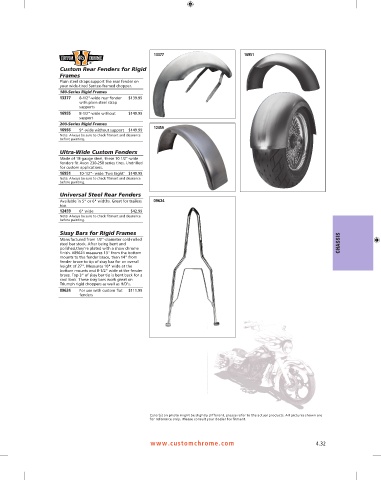

Page 233 - Custom Chrome Catalog

CHASSIS
13377 16951

Custom Rear Fenders for Rigid ’Roll-Your-Own’ Custom Blank
Frames Steel Fenders
Plain steel straps support the rear fender on Fabricate your own custom fenders with
your wide-tired Santee-framed chopper. these blank steel fenders. Made just for the
180-Series Rigid Frames custom bike builder or experienced metal-
worker. Permit you to cut, style and create
13377 8-1/2"-wide rear fender $139.99
with plain steel strap your own front and/or rear fenders. Raw steel
supports finish in smooth-side and roundtop versions.
Compatible with wheels from 16" up to 21".
16955 8-1/2"-wide without $149.99
support Smooth-Side Front Fenders with 13-3/8"
Radius
200-Series Rigid Frames
12459 88185 88171 Measures 6"-wide, accepts $99.99
16956 9"-wide without support $149.99 16" wheels
Note: Always be sure to check fitment and clearance Smooth-Side Rear Fenders with 13-3/8"
before painting.
Radius
88172 Measures 7-1/4"-wide, $99.99
Ultra-Wide Custom Fenders accepts 16" wheels
88173 Measures 8-1/2"-wide, $130.99
Made of 18-gauge steel, these 10 1/2"-wide accepts 16" wheels
fenders fit Avon 230-250 series tires. Undrilled
for custom applications. 88174 Measures 9"-wide, accepts $124.99
16" wheels
16951 10-1/2”- wide ‘Two Eight’ $149.99
88175 Measures 10-1/2"-wide, $129.99
Note: Always be sure to check fitment and clearance
before painting. accepts 16" wheels
88176 Measures 11"-wide, $134.99
accepts 16" wheels
Universal Steel Rear Fenders
Round-Top Rear Fenders with 13-3/8"
Available in 5" or 6" widths. Great for trailers 09624 88180 Radius
too. 88184 Measures 7-1/4"-wide, $99.99
12459 6" wide $42.99 accepts 16" wheels
Note: Always be sure to check fitment and clearance 88185 $119.99
before painting. Measures 8-1/2"-wide,
4 88186 accepts 16" wheels
Measures 9"-wide, accepts $124.99
Sissy Bars for Rigid Frames 16" wheels
Manufactured from 1/2"-diameter cold-rolled 88187 Measures 10-1/2"-wide, $129.99
steel bar stock. After being bent and CHASSIS accepts 16" wheels
polished,they’re plated with a show chrome 88188 Measures 11"-wide, $134.99
finish. #09624 measures 13" from the bottom accepts 16" wheels
mounts to the fender brace, then 14" from Note: Round-Top fenders are flat along the weld.
fender brace to tip of sissy bar for an overall
height of 27". Measures 10" wide at the Smooth-Side Front Fenders with 15-3/4"
bottom mounts and 8-1/2" wide at the fender Radius
brace. Top 3" of sissy bar tip is bent back for a 641903 88177 Measures 4-3/4"-wide, $99.99
cool look. These sissy bars work great on accepts 19" to 21" wheels
Triumph rigid choppers as well as H/D's. 88178 Measures 6"-wide, accepts $119.99
09624 For use with custom flat $111.99 16" to 18" wheels
fenders Smooth-Side Rear Fenders with 15-3/4"
Radius
88179 Measures 7-1/4"-wide, $108.99
accepts 16" to 18" wheels
88180 Measures 8-1/2"-wide, $119.99
accepts 16" to 18" wheels
88181 Measures 9"-wide, accepts $124.99
16" to 18" wheels
88182 Measures 10-1/2"-wide, $129.99
accepts 16" to 18" wheels
88183 Measures 11"-wide, $134.99
accepts 16" to 18" wheels
Note: Always be sure to check for fitment and
clearance before painting.
’Rigid-Style’ Rear Fender & Struts
The perfect way to give your Softail that ‘Old
School’ rigid look. Designed to fit Softail
models from 00-Up and custom applications.
Installation of the fender will require the
separate purchase of a set of chrome or raw
fender struts or you can custom build your
own.
641903 Lucky Sucker rigid-style $35.99
fender struts, raw (pr)
Color(s) on photo might be slightly different, please refer to the actual products. All pictures shown are Color(s) on photo might be slightly different, please refer to the actual products. All pictures shown are Note: Minor frame modification is required.
for reference only. Please consult your dealer for fitment. for reference only. Please consult your dealer for fitment.

www.customchrome.com 4.32 4.33 *Prices shown are suggested retail prices only. Actual retail prices are determined by each dealer and may vary. Please see Cautionary Information in back of catalog.
All parts are sold each unless otherwise noted. Retail prices may reflect an each quantity.
