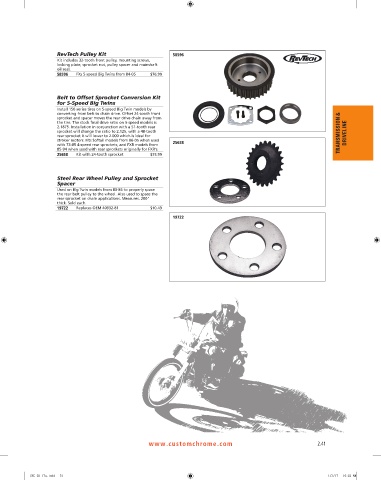

Page 89 - Custom Chrome Catalog

RevTech Pulley Kit 58596
Kit includes 32-tooth front pulley, mounting screws,
locking plate, sprocket nut, pulley spacer and mainshaft
oil seal.
58596 Fits 5-speed Big Twins from 84-05 $76.99

Belt to Offset Sprocket Conversion Kit
for 5-Speed Big Twins
Install 150-series tires on 5-speed Big Twin models by
converting from belt to chain drive. Offset 24-tooth front
sprocket and spacer moves the rear drive chain away from
the tire. The stock final drive ratio on 5-speed models is
2.1875. Installation in conjunction with a 51-tooth rear
sprocket will change the ratio to 2.125, with a 48-tooth TRANSMISSION & DRIVELINE
rear sprocket it will lower to 2.000 which is ideal for
stroker motors. Fits Softail models from 86-05 when used
with 73-85 4-speed rear sprockets, and FXR models from 25658
85-94 when used with rear sprockets originally for FXR’s.
25658 Kit with 24-tooth sprocket $35.99

Steel Rear Wheel Pulley and Sprocket
Spacer
Used on Big Twin models from 80-85 to properly space
the rear belt pulley to the wheel. Also used to space the
rear sprocket on chain applications. Measures. 200"
thick. Sold each.
19722 Replaces OEM 40932-81 $10.49
19722

www.customchrome.com 2.41
