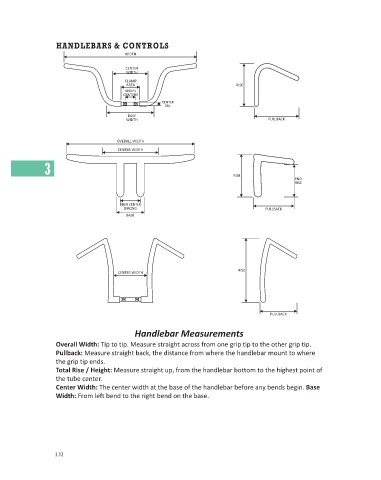

Handlebar Measurements

Overall Width: Tip to tip. Measure straight across from one grip tip to the other grip tip.
Pullback: Measure straight back, the distance from where the handlebar mount to where
the grip tip ends.
T otal Rise / Height: Measure straight up, from the handlebar bottom to the highest point of
the tube center.
Center Width: The center width at the base of the handlebar before any bends begin. Base
Width: From left bend to the right bend on the base.
