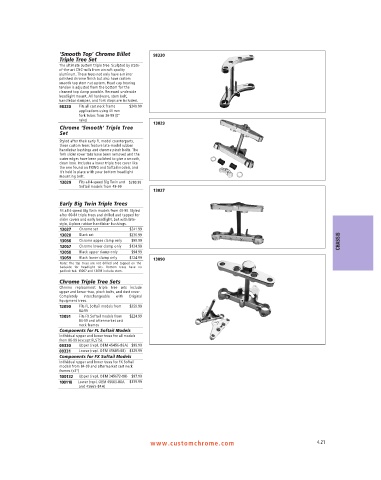

Page 273 - Custom Chrome Catalog

‘Smooth Top’ Chrome Billet 98330
Triple Tree Set
The ultimate custom triple tree. Sculpted by state-
of-the-art CNC-mills from aircraft quality
aluminum. These trees not only have a mirror
polished chrome finish but also have custom
smooth top stem nut system. Head cup bearing
tension is adjusted from the bottom for the
cleanest top clamp possible. Recessed underside
headlight mount. All hardware, stem bolt,
handlebar damper, and fork stops are included.
98330 Fits all cast neck frame $249.99
applications using 41 mm
fork tubes from 36-99 (0°
rake) 13029
Chrome ‘Smooth’ Triple Tree
Set
Styled after their early FL model counterparts,
these custom trees feature late-model rubber
handlebar bushings and chrome pinch bolts. The
fork slider cover tabs have been removed and the
outer edges have been polished to give a smooth,
clean look. Includes a lower triple tree cover like
the one found on FXWG and Softail models, and
it’s held in place with your bottom headlight
mounting bolt.
13029 Fits all 4-speed Big Twin and $280.99
Softail models from 49-99
13027

Early Big Twin Triple Trees
Fit all 4-speed Big Twin models from 49-99. Styled
after 60-84 triple trees and drilled and tapped for
slider covers and early headlight, but with late-
style, 4-piece rubber handlebar bushings.
13027 Chrome set $241.99
13028 Black set $236.99
13056 Chrome upper clamp only $99.99 CHASSIS
13057 Chrome lower clamp only $134.99
13058 Black upper clamp only $94.99
13059 Black lower clamp only $124.99 13090
Note: The top trees are not drilled and tapped on the
backside for headlight tins. Bottom trees have no
padlock tab. 13057 and 13059 include stem.
M13027
Chrome Triple Tree Sets
Chrome replacement triple tree sets include
upper and lower tree, pinch bolts, and dust cover.
Completely interchangeable with Original
Equipment trees.
13090 Fits FL Softail models from $259.99
84-99
13091 Fits FX Softail models from $224.99
84-99 and aftermarket cast
neck frames
Components for FL Softail Models
Individual upper and lower trees for all models
from 86-99 (except FLSTS).
09330 Upper (repl. OEM 45456-86A) $99.99
09331 Lower (repl. OEM 45605-88) $129.99
Components for FX Softail Models
Individual upper and lower trees for FX Softail
models from 84-99 and aftermarket cast neck
frames (+3°)
100132 Upper (repl. OEM 345672-80) $97.99
100118 Lower (repl. OEM 45665-80A $139.99
and 45665-84A)
