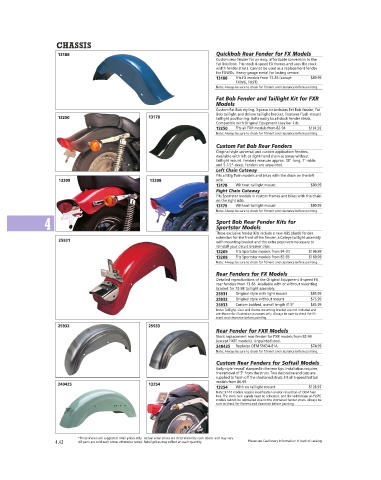

Page 294 - Custom Chrome Catalog

CHASSIS

13188 Quickbob Rear Fender for FX Models
Custom rear fender for an easy, affordable conversion to the
Fat Bob look. Fits stock 4-speed FX frames and uses the stock
width fender struts. Cannot be used as a replacement fender
for FXWGs. Heavy-gauge metal for lasting service.
13188 Fits FX models from 73-85 (except $89.99
FXWG, FXST)
Note: Always be sure to check for fitment and clearance before painting.
M13188
Fat Bob Fender and Taillight Kit for FXR
Models
Custom Fat Bob styling. 3-piece kit includes Fat Bob fender, Fat
Bob taillight and deluxe taillight bracket. Features flush-mount
13250 13178 taillight positioning. Bolts easily to all stock fender struts.
Compatible with Original Equipment sissy bar kits.
13250 Fits all FXR models from 82-94 $194.58
Note: Always be sure to check for fitment and clearance before painting.
M13250
Custom Fat Bob Rear Fenders
Original style universal and custom application fenders.
Available with left or right-hand chain cutaway without
taillight mount. Fenders measure approx. 38"-long, 7"-wide
and 5-1/2"-deep. Fenders are unpainted.
Left Chain Cutaway
Fits all Big Twin models and bikes with the chain on the left
13209 13208 side.
13178 Without taillight mount $80.99
Right Chain Cutaway
Fits Sportster models in custom frames and bikes with the chain
on the right side.
13179 Without taillight mount $80.99
Note: Always be sure to check for fitment and clearance before painting.
M13178
4 Sport Bob Rear Fender Kits for
Sportster Models
These exclusive fender kits include a new ABS plastic fender
extension for the front of the fender, a Cateye taillight assembly
25931 with mounting bracket and the extra pop rivets necessary to
reinstall your circuit breaker clips.
13209 Fits Sportster models from 94-03 $196.99
13208 Fits Sportster models from 82-93 $169.99
Note: Always be sure to check for fitment and clearance before painting.
M13209
Rear Fenders for FX Models
Detailed reproductions of the Original Equipment 4-speed FX
rear fenders from 73-85. Available with or without mounting
bracket for 73-98 taillight assembly.
25931 Original style with light mount $85.99
25932 Original style without mount $75.99
25933 Custom bobbed, overall length 41.5” $85.99
Note: Taillight, visor and license mounting bracket are not included and
are shown for illustration purposes only. Always be sure to check for fit-
ment and clearance before painting.
M25931
25932 25933
Rear Fender for FXR Models
Stock replacement rear fender for FXR models from 82-99
(except FXRT models). Unpainted steel.
240425 Replaces OEM 59634-81A $74.99
Note: Always be sure to check for fitment and clearance before painting.
M240425
Custom Rear Fenders for Softail Models
Early-style ‘reveal’ stamped in the rear tips. Installation requires
the removal of 5" from the struts. Two decorative end caps are
supplied to finish off the shortened struts. Fit all 5-speed Softail
models from 86-99.
240425 13254
13254 With no taillight mount $128.99
Note: 97-10 models require modification and/or relocation of OEM fuse
box. The stock turn signals must be relocated, and the saddlebags on FLSTC
models cannot be reinstalled due to the shortened fender struts. Always be
sure to check for fitment and clearance before painting.
M13254

*Prices shown are suggested retail prices only. Actual retail prices are determined by each dealer and may vary.
4.42 All parts are sold each unless otherwise noted. Retail prices may reflect an each quantity. Please see Cautionary Information in back of catalog.
