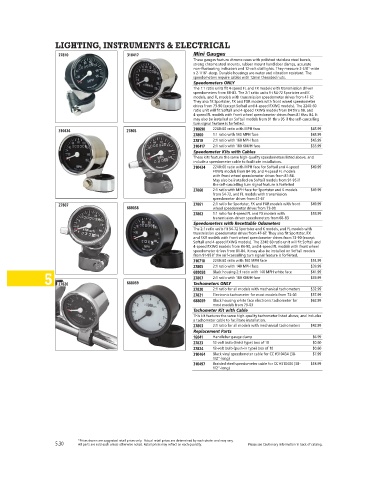

Page 436 - Custom Chrome Catalog
P. 436
27810 310417 Mini Gauges
These gauges feature chrome cases with polished stainless steel bezels,
strong chrome steel mounts, rubber mount handlebar clamps, accurate
non-fluctuating indicators and 12-volt dial lights. They measure 2-5/8"-wide
x 2-1/16"-deep. Durable housings are water and vibration resistant. The
speedometers require cables with 12mm threaded nuts.
Speedometers ONLY
The 1:1 ratio units fit 4-speed FL and FX models with transmission driven
speedometers from 68-83. The 2:1 ratio units fit 54-72 Sportster and K
models, and FL models with transmission speedometer drives from 47-67.
They also fit Sportster, FX and FXR models with front wheel speedometer
drives from 73-90 (except Softail and 4-speed FXWG models). The 2240:60
ratio unit will fit Softail and 4-speed FXWG models from 84 thru 90, and
4-speed FL models with front wheel speedometer drives from 81 thru 84. It
may also be installed on Softail models from 91 thru 95 if the self-cancelling
turn signal feature is forfeited.
310690 2240:60 ratio with MPH face $45.99
310434 27805
27800 1:1 ratio with 140 MPH face $45.99
27810 2:1 ratio with 160 MPH face $45.99
310417 2:1 ratio with 180 KM/H face $35.99
Speedometer Kits with Cables
These kits feature the same high-quality speedometers listed above, and
include a speedometer cable to facilitate installation.
310434 2240:60 ratio with MPH face for Softail and 4-speed $49.99
FXWG models from 84-90, and 4-speed FL models
with front wheel speedometer drives from 81-84.
May also be installed on Softail models from 91-95 if
the self-cancelling turn signal feature is forfeited
27860 2:1 ratio with MPH face for Sportster and K models $49.99
from 54-72, and FL models with transmission
speedometer drives from 47-67
27807 27861 2:1 ratio for Sportster, FX and FXR models with front $49.99
688058 wheel speedometer drives from 73-90
27862 1:1 ratio for 4-speed FL and FX models with $58.99
transmission-driven speedometers from 68-83
Speedometers with Resettable Odometers
The 2:1 ratio units fit 54-72 Sportster and K models, and FL models with
transmission speedometer drives from 47-67. They also fit Sportster, FX
and FXR models with front wheel speedometer drives from 73-90 (except
Softail and 4-speed FXWG models). The 2240:60 ratio unit will fit Softail and
4-speed FXWG models from 84-90, and 4-speed FL models with front wheel
speedometer drives from 81-84. It may also be installed on Softail models
from 91-95 if the self-cancelling turn signal feature is forfeited.
310718 2240:60 ratio with 160 MPH face $54.99
27805 2:1 ratio with 140 MPH face $39.99
688058 Black housing 2:1 ratio with 140 MPH white face $41.99
27807 2:1 ratio with 180 KM/H face $39.99
27820 688059 Tachometers ONLY
27820 2:1 ratio for all models with mechanical tachometers $32.99
27821 Electronic tachometer for most models from 73-03 $57.99
688059 Black housing white face electronic tachometer for $62.99
most models from 73-03
Tachometer Kit with Cable
This kit features the same high-quality tachometer listed above, and includes
a tachometer cable to facilitate installation.
27863 2:1 ratio for all models with mechanical tachometers $42.99
Replacement Parts
16041 Handlebar gauge clamp $6.99
27823 12-volt bulb (twist type) box of 10 $0.60
27824 12-volt bulb (push-in type) box of 10 $0.60
310464 Black vinyl speedometer cable for CC #310434 (38- $7.99
1/2"-long)
310497 Braided steel speedometer cable for CC #310434 (38- $18.99
1/2"-long)
M310690
*Prices shown are suggested retail prices only. Actual retail prices are determined by each dealer and may vary.
5.30 All parts are sold each unless otherwise noted. Retail prices may reflect an each quantity. Please see Cautionary Information in back of catalog.
