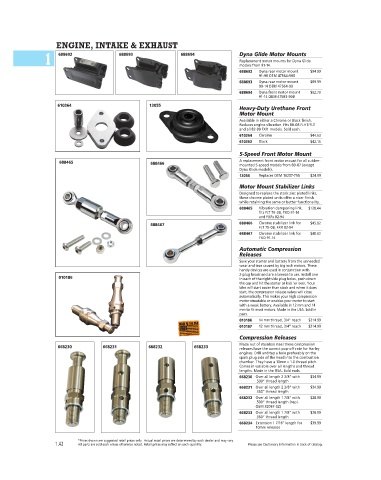

Page 54 - Custom Chrome Catalog

ENGINE, INTAKE & EXHAUST
1 688692 688693 688694 Dyna Glide Motor Mounts
Replacement motor mounts for Dyna Glide
models from 91-14.
688692 Dyna rear motor mount $94.99
91-98 OEM 47564-90B
688693 Dyna rear motor mount $89.99
99-14 OEM 47564-99
688694 Dyna front motor mount $92.79
91-14 OEM 47583-90B
M688692
610364 13055
Heavy-Duty Urethane Front
Motor Mount
Available in either a Chrome or Black finish.
Reduces engine vibration. Fits 80-08 FLHT/FLT
and all 82-99 FXR models. Sold each.
610364 Chrome $44.63
610363 Black $42.16
M610364
5-Speed Front Motor Mount
688465 688466 A replacement front motor mount for all rubber-
mounted 5-speed models from 80-07 (except
Dyna Glide models).
13055 Replaces OEM 16207-79B $24.99
M13055
Motor Mount Stabilizer Links
Designed to replace the stock zinc plated links,
these chrome plated units offer a nicer finish
while retaining the same or better functionality.
688465 Vibration dampening link, $128.44
fits FLT 79-08, FXD 91-14
and FXRs 82-94
688467 688466 Chrome stabilizer link for $45.82
FLT 79-08, FXR 82-94
688467 Chrome stabilizer link for $48.62
FXD 91-14
M688465
Automatic Compression
Releases
Save your starter and battery from the unneeded
wear and tear caused by big inch motors. These
handy devices are used in conjunction with
2-plug heads and are a breeze to use. Install one
010186 in each of the right side plug holes, push down
the cap and hit the starter or kick ‘er over. Your
bike will start easier than stock and when it does
start, the compression release valves will close
automatically. This makes your high compression
motor streetable or enables your motor to start
with a weak battery. Available in 12 mm and 14
mm to fit most motors. Made in the USA. Sold in
pairs.
010186 14 mm thread, 3/4" reach $214.99
010187 12 mm thread, 3/4" reach $214.99
M010186
Compression Releases
Made out of stainless steel these compression
668230 668231 668232 668233 releases have the correct pop-off rate for Harley
engines. Drill and tap a hole preferably on the
spark plug side of the head into the combustion
chamber. They have a 10mm x 1.0 thread pitch.
Comes in variable over all lengths and thread
lengths. Made in the USA. Sold each.
668230 Over all length 2 3/8” with $34.99
.500” thread length
668231 Over all length 2 3/8” with $34.99
.360” thread length
668232 Over all length 1 7/8” with $28.99
.500” thread length.(repl.
OEM 32067-02)
668233 Over all length 1 7/8” with $28.99
.360” thread length
668234 Extension 1 7/16” length for $39.99
10mm releases
M668230
*Prices shown are suggested retail prices only. Actual retail prices are determined by each dealer and may vary.
1.42 All parts are sold each unless otherwise noted. Retail prices may reflect an each quantity. Please see Cautionary Information in back of catalog.
