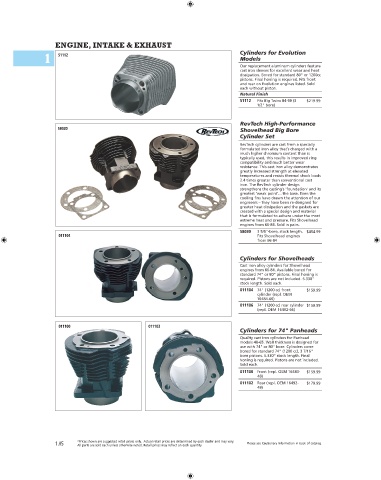

Page 10 - Custom Chrome Catalog

ENGINE, INTAKE & EXHAUST
Cylinders for Evolution
51112
1 Models
Our replacement aluminum cylinders feature
cast iron sleeves for excellent wear and heat
dissipation. Bored for standard 80" or 1200cc
pistons. Final honing is required. Fits front
and rear on Evolution engines listed. Sold
each without piston.
Natural Finish
51112 Fits Big Twins 84-99 (3 $219.99
1/2" bore)

RevTech High-Performance
58030
Shovelhead Big Bore
Cylinder Set
RevTech cylinders are cast from a specially
formulated iron alloy that’s charged with a
much higher chromium content than is
typically used, this results in improved ring
compatibility and much better wear
resistance. This cast iron alloy demonstrates
greatly increased strength at elevated
temperatures and resists thermal shock loads
2.4 times greater than conventional cast
iron. The RevTech cylinder design
strengthens the casting’s ‘foundation’ and its
greatest ‘weak point’... the base. Even the
cooling fins have drawn the attention of our
engineers – they have been re-designed for
greater heat dissipation and the gaskets are
created with a special design and material
that is formulated to adhere under the most
extreme heat and pressure. Fits Shovelhead
engines from 66-84. Sold in pairs.
58030 3 5/8"-bore, stock length. $454.99
011104 Fits Shovelhead engines
from 66-84

Cylinders for Shovelheads
Cast iron alloy cylinders for Shovelhead
engines from 66-84. Available bored for
standard 74" or 80" pistons. Final honing is
required. Pistons are not included. 5.330"
stock length. Sold each.
011104 74" (1200 cc) front $159.99
cylinder (repl. OEM
16484-66)
011106 74" (1200 cc) rear cylinder $159.99
(repl. OEM 16492-66)

011100 011102
Cylinders for 74" Panheads
Quality cast iron cylinders for Panhead
models 48-65. Wall thickness is designed for
use with 74" or 80" bore. Cylinders come
bored for standard 74" (1200 cc), 3 7/16"
bore pistons. 5.330" stock length. Final
honing is required. Pistons are not included.
Sold each.
011100 Front (repl. OEM 16483- $159.99
48)
011102 Rear (repl. OEM 16492- $179.99
48)

1.05 *Prices shown are suggested retail prices only. Actual retail prices are determined by each dealer and may vary. Please see Cautionary Information in back of catalog.
All parts are sold each unless otherwise noted. Retail prices may reflect an each quantity.
