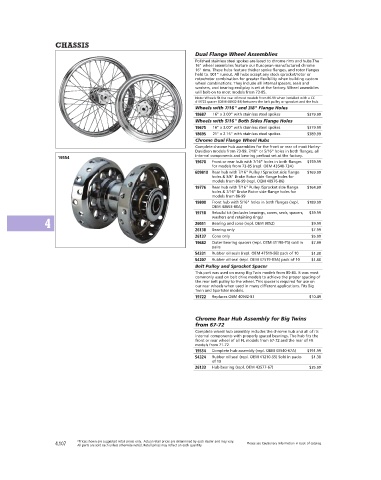

Page 306 - Custom Chrome Catalog

CHASSIS
Dual Flange Wheel Assemblies
Polished stainless steel spokes are laced to chrome rims and hubs.The
16" wheel assemblies feature our European-manufactured chrome
16" rims. These hubs feature thicker spoke flanges, and rotor flanges
held to. 001" runout. All hubs accept any stock sprocket/rotor or
rotor/rotor combination for greater flexibility when building custom
wheel combinations. They include all internal spacers, seals and
washers, and bearing end play is set at the factory. Wheel assemblies
will bolt-on to most models from 73-85.
Note: Wheels fit the rear of most models from 86-99 when installed with a CC
#19722 spacer (OEM 40932-81) between the belt pulley or sprocket and the hub.
Wheels with 7/16" and 3/8" Flange Holes
18687 16" x 3.00" with stainless steel spokes $379.99
Wheels with 5/16" Both Sides Flange Holes
19675 16" x 3.00" with stainless steel spokes $379.99
18695 21" x 2.15" with stainless steel spokes $389.99
Chrome Dual Flange Wheel Hubs
Complete chrome hub assemblies for the front or rear of most Harley-
Davidson models from 73-99. 7/16" or 5/16" holes in both flanges, all
internal components and bearing preload set at the factory.
19678 Front or rear hub with 7/16" holes in both flanges $159.99
for models from 73-85 (repl. OEM 43540-73A)
609810 Rear hub with 7/16" Pulley / Sprocket side flange $169.99
holes & 3/8" Brake Rotor side flange holes for
models from 86-99 (repl. OEM 40976-86)
19776 Rear hub with 7/16" Pulley /Sprocket side flange $164.99
holes & 7/16" Brake Rotor side flange holes for
models from 86-99
19800 Front hub with 5/16" holes in both flanges (repl. $189.99
OEM 43663-80A)
19718 Rebuild kit (includes bearings, cones, seals, spacers, $39.99
washers and retaining rings)
4 26051 Bearing and cone (repl. OEM 9052) $9.99
26138 Bearing only $7.99
26137 Cone only $5.99
19682 Outer bearing spacers (repl. OEM 41196-73) sold in $7.99
pairs
54331 Rubber oil seals (repl. OEM 47519-58) pack of 10 $1.30
54207 Rubber oil seal (repl. OEM 47519-83A) pack of 10 $1.80
Belt Pulley and Sprocket Spacer
This part was used on many Big Twin models from 80-85. It was most
commonly used on belt drive models to achieve the proper spacing of
the rear belt pulley to the wheel. This spacer is required for use on
our rear wheels when used in many different applications. Fits Big
Twin and Sportster models.
19722 Replaces OEM 40932-81 $10.49

Chrome Rear Hub Assembly for Big Twins
from 67-72
Complete wheel hub assembly includes the chrome hub and all of its
internal components with properly spaced bearings. The hub fits the
front or rear wheel of all FL models from 67-72 and the rear of FX
models from 71-72.
19554 Complete hub assembly (repl. OEM 43540-67A) $191.99
54324 Rubber oil seal (repl. OEM 41210-55) Sold in packs $1.30
of 10
26133 Hub bearing (repl. OEM 43577-67) $35.99

4.107 *Prices shown are suggested retail prices only. Actual retail prices are determined by each dealer and may vary. Please see Cautionary Information in back of catalog.
All parts are sold each unless otherwise noted. Retail prices may reflect an each quantity.
