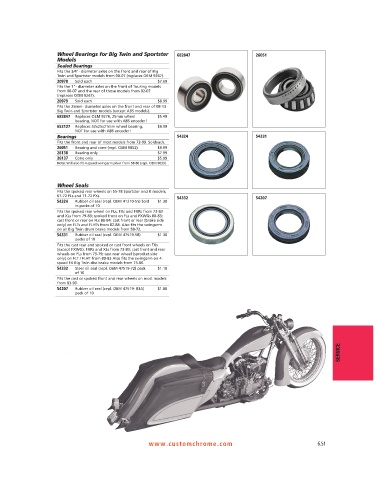

Page 443 - Custom Chrome Catalog

Wheel Bearings for Big Twin and Sportster 682847 26051
Models
Sealed Bearings
Fits the 3/4"- diameter axles on the front and rear of Big
Twin and Sportster models from 00-07 (replaces OEM 9267).
20978 Sold each $7.69
Fits the 1"- diameter axles on the front of Touring models
from 00-07 and the rear of those models from 02-07
(replaces OEM 9247).
20979 Sold each $8.99
Fits the 25mm- diameter axles on the front and rear of 08-13
Big Twin and Sportster models (except ABS models).
682847 Replaces OEM 9276, 25mm wheel $5.49
bearing, NOT for use with ABS encoder!
652127 Replaces 52x25x21mm wheel bearing, $8.99
NOT for use with ABS encoder!
Bearings 54324 54331
Fits the front and rear of most models from 73-99. Soldeach.
26051 Bearing and cone (repl. OEM 9052) $9.99
26138 Bearing only $7.99
26137 Cone only $5.99
Note: Will also fit 4-speed swingarm pivot from 58-86 (repl. OEM 9033)

Wheel Seals
Fits the spoked rear wheels on 55-78 Sportster and K models;
67-72 FLs and 71-72 FXs.
54332 54207
54324 Rubber oil seal (repl. OEM 41210-55) Sold $1.30
in packs of 10
Fits the spoked rear wheel on FLs, FXs and FXRs from 73-83
and XLs from 79-83; spoked front on FLs and FXWGs 80-83;
cast front or rear on FLs 80-84; cast front or rear (brake side
only) on FLTs and FLHTs from 82-84. Also fits the swingarm
on all Big Twin drum brake models from 58-72.
54331 Rubber oil seal (repl. OEM 47519-58) $1.30
packs of 10
Fits the cast rear and spoked or cast front wheels on FXs
(except FXWG), FXRs and XLs from 73-83; cast front and rear
wheels on FLs from 73-79; cast rear wheel (sprocket side
only) on FLT / FLHT from 80-83 Also fits the swingarm on 4-
speed FX Big Twin disc brake models from 73-86.
54332 Steel oil seal (repl. OEM 47519-72) pack $1.10
of 10
Fits the cast or spoked front and rear wheels on most models
from 83-99.
54207 Rubber oil seal (repl. OEM 47519- 83A) $1.80
pack of 10

SERVICE
M54324

www.customchrome.com 6.51
