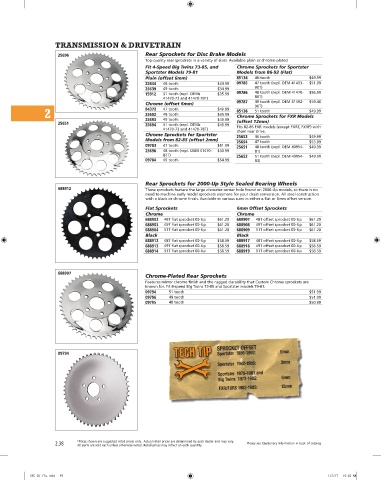

Page 86 - Custom Chrome Catalog

TRANSMISSION & DRIVETRAIN
25696 Rear Sprockets for Disc Brake Models
Top-quality rear sprockets in a variety of sizes. Available plain or chrome-plated
Fit 4-Speed Big Twins 73-85, and Chrome Sprockets for Sportster
Sportster Models 79-81 Models from 86-92 (Flat)
Plain (offset 6mm) 85134 46-tooth $49.99
25644 48 tooth $34.99 09785 47 tooth (repl. OEM 41493- $51.99
25639 49 tooth $34.99 90T)
15912 51 tooth (repl. OEMs $35.99 09786 48 tooth (repl. OEM 41470- $56.99
41470-73 and 41470-78T) 86T)
Chrome (offset 6mm) 09787 49 tooth (repl. OEM 41492- $59.40
90T)
84372
$49.99
47 tooth
2 25692 48 tooth $49.99 85138 51 tooth $49.99
Chrome Sprockets for FXR Models
25693 49 tooth $49.99
25651 25694 51 tooth (repl. OEMs $49.99 (offset 12mm)
41470-73 and 41470-78T) Fits 82-85 FXR models (except FXRT, FXRP) with
chain rear drive.
Chrome Sprockets for Sportster 25653 46 tooth $49.99
Models from 82-85 (offset 2mm) 25654 47 tooth $53.99
09783 47 tooth $51.99 25651 48 tooth (repl. OEM 40954- $49.99
25696 48 tooth (repl. OEM 41470- $50.99 81)
82T) 25652 51 tooth (repl. OEM 40954- $49.99
09784 49 tooth $54.99 83)
Rear Sprockets for 2000-Up Style Sealed Bearing Wheels
688912 These sprockets feature the large diameter center hole found on 2000-Up models, so there is no
need to machine early model sprockets anymore for your chain conversion. All steel construction
with a black or chrome finish. Available in various sizes in either a flat or 6mm offset version.
Flat Sprockets 6mm Offset Sprockets
Chrome Chrome
688902 48T flat sprocket 00-Up $61.20 688907 48T offset sprocket 00-Up $61.20
688903 49T flat sprocket 00-Up $61.20 688908 49T offset sprocket 00-Up $61.20
688904 51T flat sprocket 00-Up $61.20 688909 51T offset sprocket 00-Up $61.20
Black Black
688912 48T flat sprocket 00-Up $58.59 688917 48T offset sprocket 00-Up $58.59
688913 49T flat sprocket 00-Up $58.59 688918 49T offset sprocket 00-Up $58.59
688914 51T flat sprocket 00-Up $58.59 688919 51T offset sprocket 00-Up $58.59

688907
Chrome-Plated Rear Sprockets
Features mirror chrome finish and the rugged durability that Custom Chrome sprockets are
known for. Fit 4-speed Big Twins 73-85 and Sportster models 79-81.
09794 51 tooth $51.99
09796 49 tooth $51.99
09795 48 tooth $50.99

09794

2.38 *Prices shown are suggested retail prices only. Actual retail prices are determined by each dealer and may vary. Please see Cautionary Information in back of catalog.
All parts are sold each unless otherwise noted. Retail prices may reflect an each quantity.
