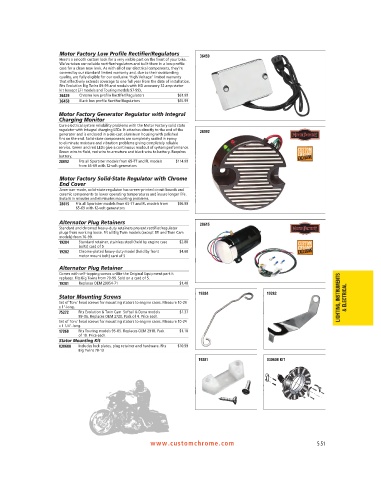

Page 457 - Custom Chrome Catalog

Motor Factory Low Profile Rectifier/Regulators 36459
Here’s a smooth custom look for a very visible part on the front of your bike.
We’ve taken our reliable rectifier/regulators and built them in a low-profile
case for a clean new look. As with all of our electrical components, they’re
covered by our standard limited warranty and, due to their outstanding
quality, are fully eligible for our exclusive ‘High Voltage’ limited warranty
that effectively extends coverage to one full year from the date of installation.
Fits Evolution Big Twins 89-99 and models with HD accessory 32 amp stator
kit (except EFI models and Touring models 97-99).
36459 Chrome low profile Rectifer/Regulators $61.99
36458 Black low profile Rectifer/Regulators $65.99
M36458
Motor Factory Generator Regulator with Integral
Charging Monitor
Cure electrical system reliability problems with the Motor Factory solid state
regulator with integral charging LEDs. It attaches directly to the end of the 28092
generator and is enclosed in a die-cast aluminum housing with polished
fins on the end. Solid-state components are completely sealed in epoxy
to eliminate moisture and vibration problems giving completely reliable
service. Green and red LEDs give a continuous readout of system performance.
Green wire to field, red wire to armature and black wire to battery. Requires
battery.
28092 Fits all Sportster models from 65-77 and FL models $114.99
from 65-69 with 12-volt generators
M28092
Motor Factory Solid-State Regulator with Chrome
End Cover
American-made, solid-state regulator has screen-printed circuit boards and
ceramic components to lower operating temperatures and insure longer life.
Installs in minutes and eliminates mounting problems.
28615 Fits all Sportster models from 65-77 and FL models from $96.99
65-69 with 12-volt generators
M28615
Alternator Plug Retainers 28615
Standard and chromed heavy-duty retainers prevent rectifier/regulator
plugs from working loose. Fit all Big Twin models (except EFI and Twin Cam
models) from 70-99.
19284 Standard retainer, stainless steel (held by engine case $2.80
bolts) card of 5
19282 Chrome-plated heavy-duty model (held by front $4.60
motor mount bolt) card of 5
M19284
Alternator Plug Retainer
Comes with self-tapping screws unlike the Original Equipment part it
replaces. Fits Big Twins from 70-99. Sold on a card of 5.
19281 Replaces OEM 29954-71 $1.40
M19281
19284 19282
Stator Mounting Screws LIGHTING, INSTRUMENTS & ELECTRICAL
Set of Torx¨ head screws for mounting stators to engine cases. Measure 10-24
x 1"-long.
75272 Fits Evolution & Twin Cam Softail & Dyna models $1.37
89-06. Replaces OEM 2720. Pack of 4. Price each.
Set of Torx¨ head screws for mounting stators to engine cases. Measure 10-24
x 1 1/4"-long.
17268 Fits Touring models 95-05. Replaces OEM 2918. Pack $1.10
of 10. Price each.
Stator Mounting Kit
030608 Includes lock plates, plug retainer and hardware. Fits $10.99
Big Twins 70-13
M 75272
19281 030608 KIT
