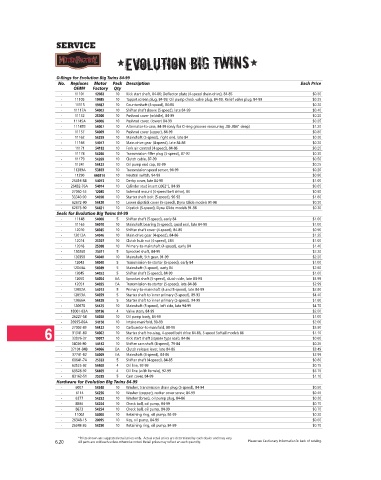

Page 490 - Custom Chrome Catalog
P. 490

SERVICE
                                               Evolution Big Twins



                      O-Rings for Evolution Big Twins 84-99
                      No.  Replaces   Motor   Pack  Description                                               Each Price
                            OEM#   Factory  Qty
                       -    11101   12082  10  Kick start shaft, 84-86; Deflector plate (4-speed chain drive), 84-85  $0.30
                       -    11105   19485  10  Tappet screen plug, 84-99; Oil pump check valve plug, 84-99, Relief valve plug, 84-99  $0.35
                       -    11115   19487  10  Countershaft (4-speed), 84-86                                       $0.30
                       -    11117A  54003  10  Shifter shaft sleeve (5-speed), late 84-99                          $0.40
                       -    11132   25300  10  Pushrod cover (middle), 84-99                                       $0.20
                       -    11145A  54006  10  Pushrod cover, (lower) 84-99                                        $0.25
                       -    11147B  54007  10  Alternator-to-case, 84-99 (only for O-ring grooves measuring .08-.084" deep)  $1.20
                       -    11157   54009  10  Pushrod cover (upper), 84-99                                        $0.80
                       -    11162   54259  10  Mainshaft (5-speed), right end, late 84                             $0.30
                       -    11166   54017  10  Main drive gear (4-speed), late 84-86                               $0.30
                       -    11171   54182  10  Fork air control (4-speed), 84-86                                   $0.25
                       -    11178   54266  10  Transmission filler plug (5-speed), 87-92                            $0.30
                       -    11179   54269  10  Clutch cable, 87-99                                                 $0.50
                       -    11241   54423  10  Oil pump end cap, 92-99                                             $0.25
                       -    11289A  53893  10  Transmission speed sensor, 94-99                                    $0.20
                       -    11290  660314  10  Neutral switch, 94-99                                               $0.90
                       -   25416-84  54013  10  Derby cover, late 84-98                                            $1.00
                       -   26432-76A  54014  10  Cylinder stud insert (.062"), 84-99                               $0.65
                       -   27060-55  12085  10  Solenoid mount (4-speed belt drive), 84                            $0.80
                       -   33340-90  54050  10  Starter shaft bolt (5-speed), 90-92                                $1.60
                       -   62672-90  54420  10  Lower dipstick cover (5-speed), Dyna Glide models 91-98            $0.30
                       -   62673-90  54421  10  Dipstick (5-speed), Dyna Glide models 91-98                        $0.30
                      Seals for Evolution Big Twins 84-99
                       -    11148   54008  5   Shifter shaft (5-speed), early 84                                   $1.00
                       -    11165   54010  10  Mainshaft bearing (5-speed), quad seal, late 84-99                  $1.00
                       -    12010   54045  10  Shifter shaft cover (4-speed), 84-86                                $0.90
                       -    12013A  54046  10  Main drive gear (4-speed), 84-86                                    $1.25
                       -    12014   25307  10  Clutch hub nut (4-speed), E84                                       $1.00
                       -    12018   25308  10  Primary-to-mainshaft (4-speed), early 84                            $1.40
                       -    12026B  25311  5   Sprocket shaft, 84-99                                               $2.20
                       -    12035B  54040  10  Mainshaft, 5th gear, 91-99                                          $2.20
                       -    12043   54048  5   Transmission-to-starter (5-speed), early 84                         $1.00
                       -    12044A  54049  5   Mainshaft (5-speed), early 84                                       $2.60
                       -    12045   54052  5   Shifter shaft (5-speed), 84-99                                      $1.60
                       -    12050   54054  EA  Sprocket shaft (5-speed), clutch side, late 84-94                   $4.99
                       -    12051   54055  EA  Transmission-to-starter (5-speed), late 84-88                       $2.99
                       -    12052A  54073  5   Primary-to-mainshaft (4 and 5-speed), late 84-99                    $2.90
                       -    12053A  54059  5   Starter shaft to inner primary (5-speed), 89-93                     $4.40
                       -    12066A  54428  5   Starter shaft to inner primary (5-speed), 94-99                     $1.60
                       -    12067B  54425  10  Mainshaft (5-speed), left side, late 94-99                          $4.70
                       -   18001-83A  99196  4  Valve stem, 84-99                                                  $2.50
                       -   26227-58  54058  10  Oil pump body, 84-99                                               $1.00
                       -   26995-86A  54150  10  Intake manifold, 90-99                                            $2.00
                       -   27002-89  54422  10  Carburetor-to-manifold, 88-99                                      $3.90
                 6     - -  31341-80  54062  10  Starter shaft housing, 4-speed belt drive 84-86, 5-speed Softail models 86  $1.10
                                    19077
                                               Kick start shaft (square type seal), 84-86
                           33076-37
                                                                                                                   $0.60
                                           10
                       -   34036-80  54182  10  Shifter cam shaft (4-speed), 79-84                                 $0.25
                       -   37101-84B  54066  EA  Clutch release lever, late 84-86                                  $3.49
                       -   37741-82  54069  EA  Mainshaft (4-speed), 84-86                                         $2.99
                       -   60641-74  25333  5  Shifter shaft (4-speed), 84-85                                      $0.80
                       -   63525-92  54408  4  Oil line, 92-99                                                     $0.75
                       -   63528-92  54409  4  Oil line (with ferrule), 92-99                                      $5.75
                       -   83162-51  25335  5  Cam cover, 84-99                                                    $1.10
                      Hardware for Evolution Big Twins 84-99
                       -    6007    54248  10  Washer, transmission drain plug (5-speed), 84-94                    $0.50
                       -     6114   54256  10  Washer (copper), rocker cover screw, 84-99                          $0.45
                       -     6377   54252  10  Washer (brass), oil pump plug, 84-86                                $0.30
                       -    8866    54254  10  Check ball, oil pump, 84-99                                         $0.70
                       -     8873   54254  10  Check ball, oil pump, 84-99                                         $0.70
                       -    11002   54000  10  Retaining ring, oil pump, 84-99                                     $0.20
                       -   26348-15  20095  10  Key, oil pump, 84-99                                               $0.60
                       -   26348-36  54250  10  Retaining ring, oil pump, 84-99                                    $0.70

                             *Prices shown are suggested retail prices only.  Actual retail prices are determined by each dealer and may vary.
                     6.20    All parts are sold each unless otherwise noted. Retail prices may reflect an each quantity.  Please see Cautionary Information in back of catalog.
