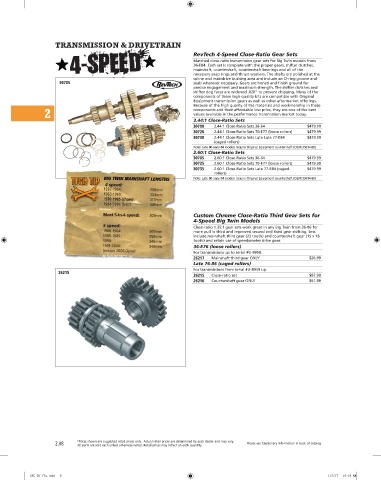

Page 56 - Custom Chrome Catalog

TRANSMISSION & DRIVETRAIN
RevTech 4-Speed Close-Ratio Gear Sets
Matched close-ratio transmission gear sets for Big Twin models from
36-E84. Each set is complete with the proper gears, shifter clutches,
mainshaft, countershaft, countershaft bearings and all of the
necessary snap rings and thrust washers. The shafts are polished at the
spline and maindrive bushing area and include an O-ring groove and
30705 seals wherever necessary. Gears are honed and finish ground for
precise engagement and maximum strength. The shifter clutches and
shifter dog faces are widened .020" to prevent chipping. Many of the
components of these high-quality kits are compatible with Original
Equipment transmission gears as well as other aftermarket offerings.
Because of the high quality of the materials and workmanship in these
2 components and their affordable low price, they are one of the best
values available in the performance transmission market today.
2.44:1 Close-Ratio Sets
30700 2.44:1 Close-Ratio Sets 36-64 $479.99
30720 2.44:1 Close-Ratio Sets 70-E77 (loose rollers) $479.99
30730 2.44:1 Close-Ratio Sets Late Late 77-E84 $479.99
(caged rollers)
Note: Late 80-early 84 models require Original Equipment countershaft (OEM 35614-80)
2.60:1 Close-Ratio Sets
30705 2.60:1 Close-Ratio Sets 36-64 $479.99
30725 2.60:1 Close-Ratio Sets 70-E77 (loose rollers) $479.99
30735 2.60:1 Close-Ratio Sets Late 77-E84 (caged $479.99
rollers)
Note: Late 80-early 84 models require Original Equipment countershaft (OEM 35614-80)

Custom Chrome Close-Ratio Third Gear Sets for
4-Speed Big Twin Models
Close-ratio 1.35:1 gear sets work great in any Big Twin from 36-86 for
more pull in third and improved second and third gear shifting. Sets
include mainshaft third gear (23 tooth) and countershaft gear (15 x 18
tooth) and retain use of speedometer drive gear.
36-E76 (loose rollers)
For transmissions up to serial #U-8958.
26217 Mainshaft third gear ONLY $26.99
Late 76-86 (caged rollers)
For transmissions from serial #U-8959 up.
26215
26215 Close-ratio set $87.99
26216 Countershaft gear ONLY $61.99

2.08 *Prices shown are suggested retail prices only. Actual retail prices are determined by each dealer and may vary. Please see Cautionary Information in back of catalog.
All parts are sold each unless otherwise noted. Retail prices may reflect an each quantity.
