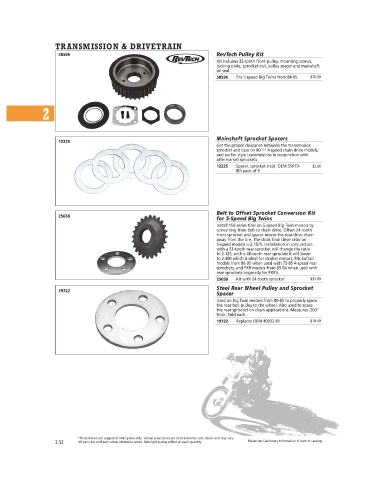

Page 138 - Custom Chrome Catalog

TRANSMISSION & DRIVETRAIN

58596 RevTech Pulley Kit
Kit includes 32-tooth front pulley, mounting screws,
locking plate, sprocket nut, pulley spacer and mainshaft
oil seal.
58596 Fits 5-speed Big Twins from 84-05 $76.99

2

Mainshaft Sprocket Spacers
12225
Get the proper clearance between the transmission
sprocket and case on 80-11 4-speed chain drive models,
and earlier style transmissions in conjunction with
aftermarket sprockets.
12225 Spacer, sprocket (repl. OEM 35079- $2.60
80) pack of 5

M12225
Belt to Offset Sprocket Conversion Kit
25658 for 5-Speed Big Twins
Install 150-series tires on 5-speed Big Twin models by
converting from belt to chain drive. Offset 24-tooth
front sprocket and spacer moves the rear drive chain
away from the tire. The stock final drive ratio on
5-speed models is 2.1875. Installation in conjunction
with a 51-tooth rear sprocket will change the ratio
to 2.125, with a 48-tooth rear sprocket it will lower
to 2.000 which is ideal for stroker motors. Fits Softail
models from 86-05 when used with 73-85 4-speed rear
sprockets, and FXR models from 85-94 when used with
rear sprockets originally for FXR’s.
25658 Kit with 24-tooth sprocket $35.99
Steel Rear Wheel Pulley and Sprocket
19722
Spacer
Used on Big Twin models from 80-85 to properly space
the rear belt pulley to the wheel. Also used to space
the rear sprocket on chain applications. Measures .200"
thick. Sold each.
19722 Replaces OEM 40932-81 $10.49
