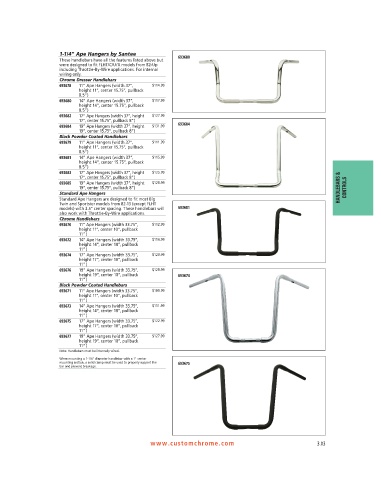

P. 145

1-1/4” Ape Hangers by Santee               693680
                       These handlebars have all the features listed above but
                       were designed to fit FLHT/C/U/X models from 82-Up
                       including Throttle-By-Wire applications. For internal
                       wiring only.
                       Chrome Dresser Handlebars
                       693678  11” Ape Hangers (width 37”,   $114.99
                              height 11”, center 15.75”, pullback
                              8.5”)
                       693680  14” Ape Hangers (width 37”,   $117.99
                              height 14”, center 15.75”, pullback
                              8.5”)
                       693682  17” Ape Hangers (width 37”, height   $127.99
                              17”, center 15.75”, pullback 8”)
                       693684  19” Ape Hangers (width 37”, height   $131.99  693684
                              19”, center 15.75”, pullback 8”)
                       Black Powder Coated Handlebars
                       693679  11” Ape Hangers (width 37”,   $111.99
                              height 11”, center 15.75”, pullback
                              8.5”)
                       693681  14” Ape Hangers (width 37”,   $115.99
                              height 14”, center 15.75”, pullback
                              8.5”)
                       693683  17” Ape Hangers (width 37”, height   $125.99
                              17”, center 15.75”, pullback 8”)
                       693685  19” Ape Hangers (width 37”, height   $128.99
                              19”, center 15.75”, pullback 8”)                                                               HANDLEBARS &   CONTROLS
                       Standard Ape Hangers
                       Standard Ape Hangers are designed to fit most Big
                       Twin and Sportster models from 82-13 (except FLHT
                       models) with 3.5” center spacing. These handlebars will   693681
                       also work with Throttle-By-Wire applications.
                       Chrome Handlebars
                       693670  11” Ape Hangers (width 33.75”,   $112.99
                              height 11”, center 10”, pullback
                              11”)
                       693672  14” Ape Hangers (width 33.75”,   $114.99
                              height 14”, center 10”, pullback
                              11”)
                       693674  17” Ape Hangers (width 33.75”,   $123.99
                              height 17”, center 10”, pullback
                              11”)
                       693676  19” Ape Hangers (width 33.75”,   $128.99
                              height 19”, center 10”, pullback    693674
                              11”)
                       Black Powder Coated Handlebars
                       693671  11” Ape Hangers (width 33.75”,   $109.99
                              height 11”, center 10”, pullback
                              11”)
                       693673  14” Ape Hangers (width 33.75”,   $111.99
                              height 14”, center 10”, pullback
                              11”)
                       693675  17” Ape Hangers (width 33.75”,   $122.99
                              height 17”, center 10”, pullback
                              11”)
                       693677  19” Ape Hangers (width 33.75”,   $127.99
                              height 19”, center 10”, pullback
                              11”)
                       Note: Handlebars must be internally wired.
                       When mounting a 1-1/4" diameter handlebar with a 1" center
                       mounting section, a solid clamp must be used to properly support the   693675
                       bar and prevent breakage.
                       M693678 - M693670














                                                        www.customchrome.com                                        3.03
