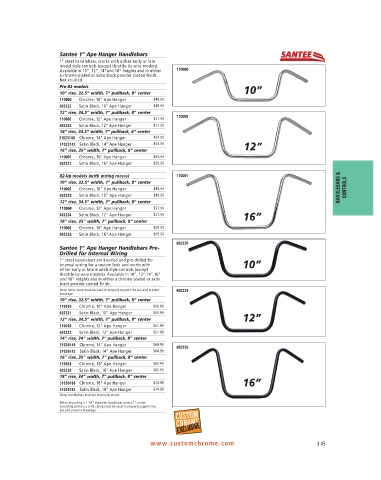

Page 147 - Custom Chrome Catalog

Santee 1” Ape Hanger Handlebars
1” steel handlebars, works with either early or late
model style controls (except throttle-by-wire models).
Available in 10”, 12”, 14”and 16” heights and in either 110000
a chrome-plated or Satin black powder coated finish.
Not knurled.
Pre-82 models
10” rise, 32.5” width, 7” pullback, 8” center 10”
110000 Chrome, 10” Ape Hanger $49.99
602222 Satin Black, 10” Ape Hanger $49.99
12” rise, 34.5” width, 7” pullback, 8” center
110005
110005 Chrome, 12” Ape Hanger $57.99
602225 Satin Black, 12” Ape Hanger $57.99
14” rise, 34.5” width, 7” pullback, 8” center
31023148 Chrome, 14” Ape Hanger $64.99
31023142 Satin Black, 14” Ape Hanger $64.99 12”
16” rise, 35” width, 7” pullback, 8” center
110001 Chrome, 16” Ape Hanger $69.99
602227 Satin Black, 16” Ape Hanger $69.99
82-Up models (with wiring recess) 110001
10” rise, 32.5” width, 7” pullback, 8” center
110002 Chrome, 10” Ape Hanger $49.99 HANDLEBARS & CONTROLS
602220 Satin Black, 10” Ape Hanger $49.99
12” rise, 34.5” width, 7” pullback, 8” center
110004 Chrome, 12” Ape Hanger $57.99
602224 Satin Black, 12” Ape Hanger $57.99 16”
16” rise, 35” width, 7” pullback, 8” center
110003 Chrome, 16” Ape Hanger $69.99
602226 Satin Black, 16” Ape Hanger $69.99
M110000
602220
Santee 1” Ape Hanger Handlebars Pre-
Drilled for Internal Wiring
1” steel handlebars are knurled and pre-drilled for
internal wiring for a custom look and works with 10”
either early or late models style controls (except
throttle-by-wire models). Available in 10”, 12”,14”,16”
and 18” heights and in either a chrome-plated or satin
black powder coated finish.
Note: Solid clamp must be used to properly support the bar and prevent 602224
breakage.
10” rise, 32.5” width, 7” pullback, 8” center
110039 Chrome, 10” Ape Hanger $49.99
602221 Satin Black, 10” Ape Hanger $49.99
12” rise, 34.5” width, 7” pullback, 8” center 12”
110028 Chrome, 12” Ape Hanger $57.99
602223 Satin Black, 12” Ape Hanger $57.99
14” rise, 34” width, 7” pullback, 8” center
31036148 Chrome, 14” Ape Hanger $64.99 602226
31036142 Satin Black, 14” Ape Hanger $64.99
16” rise, 35” width, 7” pullback, 8” center
110058 Chrome, 16” Ape Hanger $69.99
602228 Satin Black, 16” Ape Hanger $69.99
18” rise, 34” width, 7” pullback, 8” center
31036188 Chrome, 18” Ape Hanger $74.99 16”
31036182 Satin Black, 18” Ape Hanger $74.99
Note: Handlebars must be internally wired.
When mounting a 1-1/4" diameter handlebar with a 1" center
mounting section, a solid clamp must be used to properly support the
bar and prevent breakage.

www.customchrome.com 3.05
