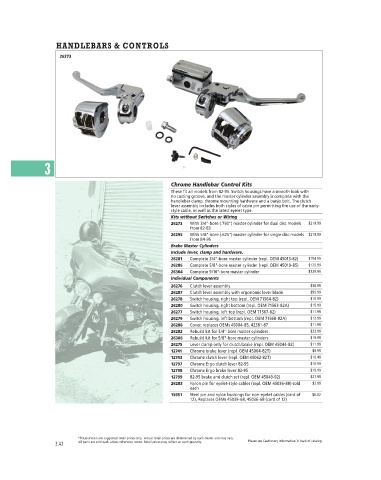

Page 184 - Custom Chrome Catalog

HANDLEBARS & CONTROLS

26273

3

Chrome Handlebar Control Kits
These fit all models from 82-95. Switch housings have a smooth look with
no casting groove, and the master cylinder assembly is complete with the
handlebar clamp, chrome mounting hardware and a banjo bolt. The clutch
lever assembly includes both styles of cable pin permitting the use of the early-
style cable, as well as the latest eyelet type.
Kits without Switches or Wiring
26273 With 3/4"-bore (.750") master cylinder for dual disc models $219.99
from 82-83
26295 With 5/8"-bore (.625") master cylinder for single disc models $219.99
from 84-95
Brake Master Cylinders
Include lever, clamp and hardware.
26281 Complete 3/4"-bore master cylinder (repl. OEM 45013-82) $154.99
26286 Complete 5/8"-bore master cylinder (repl. OEM 45019-85) $129.99
26364 Complete 9/16"-bore master cylinder $129.99
Individual Components
26276 Clutch lever assembly $36.99
26287 Clutch lever assembly with ergonomic lever blade $55.99
26278 Switch housing, right top (repl. OEM 71564-82) $15.99
26280 Switch housing, right bottom (repl. OEM 71563-82A) $15.99
26277 Switch housing, left top (repl. OEM 71567-82) $11.99
26279 Switch housing, left bottom (repl. OEM 71568-82A) $12.99
26288 Cover, replaces OEMs 45004-85, 42381-87 $11.99
26282 Rebuild kit for 3/4"-bore master cylinders $23.99
26306 Rebuild kit for 5/8"-bore master cylinders $19.99
26275 Lever clamp only for clutch/brake (repl. OEM 45044-82) $11.99
12741 Chrome brake lever (repl. OEM 45064-82T) $9.99
12743 Chrome clutch lever (repl. OEM 45062-82T) $10.49
12797 Chrome Ergo clutch lever 82-95 $16.99
12798 Chrome Ergo brake lever 82-95 $15.99
12799 82-95 brake and clutch set (repl. OEM 45049-92) $27.99
26283 Nylon pin for eyelet-style cables (repl. OEM 45036-88) sold $2.99
each
15951 Steel pin and nylon bushings for non-eyelet cables (card of $0.92
12), Replaces OEMs 45039-68, 45036-68 (card of 12)
M26393

*Prices shown are suggested retail prices only. Actual retail prices are determined by each dealer and may vary.
3.42 All parts are sold each unless otherwise noted. Retail prices may reflect an each quantity. Please see Cautionary Information in back of catalog.
