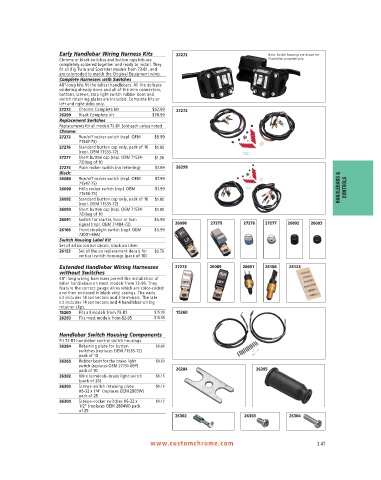

Page 189 - Custom Chrome Catalog

Early Handlebar Wiring Harness Kits 27272 Note: Switch housings are shown for
Chrome or black switches and button caps kits are illustration purposes only.
completely soldered together and ready to install. They
fit all Big Twin and Sportster models from 73-81, and
are colorcoded to match the Original Equipment wires.
Complete Harnesses with Switches
48"-long kits fit the tallest handlebars. All the delicate
soldering already done and all of the wire connectors,
buttons, screws, stop light switch rubber boot and
switch retaining plates are included. Complete kits or
left and right sides only.
27272 Chrome Complete kit $62.99 27272
26299 Black Complete kit $38.99
Replacement Switches
Replacements for all models 72-81. Sold each unless noted.
Chrome:
27273 Run/off rocker switch (repl. OEM $9.99
71547-75)
27276 Standard button cap only, pack of 10 $1.00
(repl. OEM 71535-72)
27277 Short button cap (repl. OEM 71534- $1.50
72) bag of 10
27275 Plain rocker switch (no lettering) $7.99 26299
Black:
26089 Run/off rocker switch (repl. OEM $7.99
71547-75)
26090 Hi/lo rocker switch (repl. OEM $7.99 HANDLEBARS & CONTROLS
71546-75)
26092 Standard button cap only, pack of 10 $1.00
(repl. OEM 71535-72)
26093 Short button cap (repl. OEM 71534- $1.00
72) bag of 10
26091 Switch for starter, horn or turn $5.99
signal (repl. OEM 71484-72) 26090 27275 27276 27277 26092 26093
26106 Front stoplight switch (repl. OEM $5.99
72001-69A)
Switch Housing Label Kit
Set of all six control decals, black on silver.
26123 Set of the six replacement decals for $0.70
vertical switch housings (pack of 10)
M27273
Extended Handlebar Wiring Harnesses 27273 26089 26091 26106 26123
without Switches
48"-long wiring harnesses permit the installation of
taller handlebars on most models from 73-95. They
feature the correct gauge wires which are color-coded
and then enclosed in black vinyl casings. The early
kit includes 14 connectors and 3 terminals. The late
kit includes 14 connectors and 4 handlebar wiring
retainer clips.
15260 Fits all models from 73-81 $15.99 15260
26293 Fits most models from 82-95 $16.99
M15260
Handlebar Switch Housing Components
Fit 72-81 handlebar control switch housings.
26284 Retaining plate for button $0.40
switches (replaces OEM 71533-72)
pack of 10
26285 Rubber boot for the brake light $0.60
switch (replaces OEM 27751-69P)
pack of 10 26284 26285
26302 Wire terminals–brake light switch $0.16
(pack of 25)
26303 Screws–switch retaining plate $0.16
#6-32 x 1/4" (replaces OEM 2803W)
pack of 25
26304 Screws–rocker switches #6-32 x $0.12
1/2" (replaces OEM 2804W) pack
of 25
M26284 26302 26303 26304

www.customchrome.com 3.47
