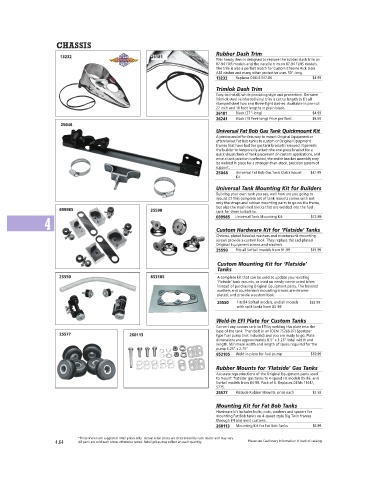

Page 316 - Custom Chrome Catalog

CHASSIS

Rubber Dash Trim
13232 26181
This handy item is designed to replace the rubber dash trim on
87-94 FXR models and the nacelle trim on 87-94 FLHS models.
The trim is also a perfect match for Custom Chrome Rick Doss
ABS dashes and many other protective uses. 50"-long.
13232 Replaces OEM 61117-86 $4.99
M13232
Trimlok Dash Trim
Easy-to-install, while providing style and protection. Genuine
Trimlok steel reinforced vinyl trim is cut to length to fit all
stamped steel two and three-light dashes. Available in pre-cut
27 inch and 10 foot lengths in plain black.
26181 Black (27"-long) $4.99
26241 Black (10 feet-long) Price per foot. $9.99
25048 M26181
Universal Fat Bob Gas Tank Quickmount Kit
A precise and effortless way to mount Original Equipment or
aftermarket Fat Bob tanks to custom or Original Equipment
frames that have had the gas tank brackets removed. It permits
the builder to temporarily attach the one-piece bracket for a
quick visual check of tank placement on custom applications, and
once a tank position is selected, the entire bracket assembly may
be welded in place for a stronger-than-stock, precision system of
support.
25048 Universal Fat Bob Gas Tank Quickmount $47.99
Kit
M25048
Universal Tank Mounting Kit for Builders
Building your own tank you say, well how are you going to
mount it? This complete set of tank mounts comes with not
only the straps and rubber mounting parts to go on the frame,
699985 25590 but also the machined blocks that are welded into the fuel
tank for them to bolt to.
4 699985 Universal Tank Mounting Kit $72.99
M699985
Custom Hardware Kit for ‘Flatside’ Tanks
Chrome-plated beveled washers and countersunk mounting
screws provide a custom look. They replace the cad-plated
Original Equipment screws and washers.
25590 Fits all Softail models from 91-99 $15.99
M25590
Custom Mounting Kit for ‘Flatside’
Tanks
25550 653105 A complete kit that can be used to update your existing
‘flatside’ tank mounts, or used on newly-constructed bikes
instead of purchasing Original Equipment parts. The beveled
washers and countersunk mounting screws are chrome-
plated, and provide a custom look.
25550 Fits 84 Softail models, and all models $55.99
with split tanks from 85-99
M25550
Weld-In EFI Plate for Custom Tanks
Convert any custom tank to EFI by welding this plate into the
base of the tank. Then bolt in an (OEM 75268-07) Sportster
25577 260113 type fuel pump (not included) and you are ready to go. Plate
dimensions are approximately 8.5” x 5.25” total width and
length. Minimum width and length of space required for the
pump 6.25” x 2.75”
653105 Weld in plate for fuel pump $59.99
M653105
Rubber Mounts for ‘Flatside’ Gas Tanks
Accurate reproductions of the Original Equipment parts used
to mount ‘flatside’ gas tanks to 4-speed FX models 85-86, and
Softail models from 84-99. Pack of 6. Replaces OEMs 11447,
5775.
25577 Flatside Rubber Mounts, price each $2.50
M25577
Mounting Kit for Fat Bob Tanks
Hardware kit includes bolts, nuts, washers and spacers for
mounting Fat Bob tanks on 4-speed style Big Twin frames
through 84 and most customs.
260113 Mounting Kit for Fat Bob Tanks $6.99
M260113
*Prices shown are suggested retail prices only. Actual retail prices are determined by each dealer and may vary.
4.64 All parts are sold each unless otherwise noted. Retail prices may reflect an each quantity. Please see Cautionary Information in back of catalog.
