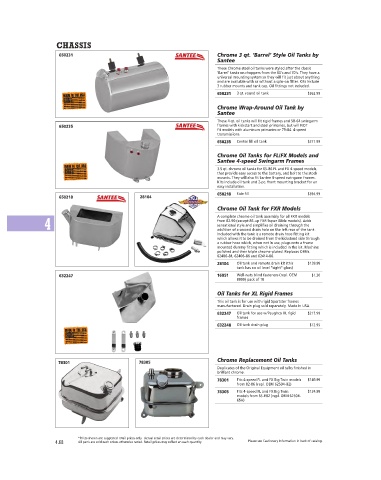

Page 320 - Custom Chrome Catalog

CHASSIS

650231 Chrome 3 qt. ‘Barrel’ Style Oil Tanks by
Santee
These Chrome steel oil tanks were styled after the classic
‘Barrel’ tanks on choppers from the 60’s and 70’s. They have a
universal mounting system so they will fit just about anything
and are available with or without a spin-on filter. Kits include
3 rubber mounts and tank cap. Oil fittings not included.
650231 3 qt. round oil tank $362.99
M650231
Chrome Wrap-Around Oil Tank by
Santee
These 4 qt. oil tanks will fit rigid frames and 58-64 swingarm
650235 frames with kickstart and steel primaries, but will NOT
fit models with aluminum primaries or 79-84 4-speed
transmissions.
650235 Center fill oil tank $277.99
M650235
Chrome Oil Tanks for FL/FX Models and
Santee 4-speed Swingarm Frames
3.5 qt. chrome oil tanks for 65-86 FL and FX 4-speed models,
that provide easy access to the battery, and bolt to the stock
mounts. They will also fit Santee 4-speed swingarm frames.
Kits include oil tank and 2-pc. front mounting bracket for an
easy installation.
650218 Side fill $394.99
650218 28104
M650218
Chrome Oil Tank for FXR Models
4 A complete chrome oil tank assembly for all FXR models
from 82-90 (except 86-up FXR Super Glide models). Adds
sensational style and simplifies oil draining through the
addition of a second drain hole on the left rear of the tank.
Included with the tank is a remote drain hose fitting kit
which allows it to be drained from the kickstand side through
a rubber hose which, when not in use, plugs onto a frame
mounted dummy fitting which is included in the kit. Machine
polished and then triple chrome-plated. Replaces OEMs
62406-81, 62406-86 and 62414-86.
28104 Oil tank and remote drain kit (this $139.99
tank has no oil level "sight" glass)
632247 16051 Well-nuts blind fasteners (repl. OEM $1.30
8099) pack of 10
M28104
Oil Tanks for XL Rigid Frames
This oil tank is for use with rigid Sportster frames
manufactured. Drain plug sold separately. Made in USA.
632247 Oil tank for use w/Paughco XL rigid $217.99
frames
632248 Oil tank drain plug $12.95

M632247
Chrome Replacement Oil Tanks
78301 78305
Duplicates of the Original Equipment oil talks finished in
brilliant chrome.
78301 Fits 4-speed FL and FX Big Twin models $149.99
from 82-86 (repl. OEM 62504-82)
78305 Fits 4-speed FL and FX Big Twin $124.99
models from 65-E82 (repl. OEM 62504-
65A)
M78301

*Prices shown are suggested retail prices only. Actual retail prices are determined by each dealer and may vary.
4.68 All parts are sold each unless otherwise noted. Retail prices may reflect an each quantity. Please see Cautionary Information in back of catalog.
