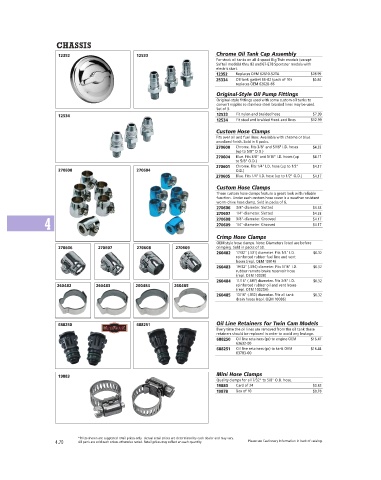

Page 322 - Custom Chrome Catalog

CHASSIS

12352 12533 Chrome Oil Tank Cap Assembly
For stock oil tanks on all 4-speed Big Twin models (except
Softail models) thru 82 and 67-E78 Sportster models with
electric start.
12352 Replaces OEM 62610-52TA $28.99
25334 Oil tank gasket 66-82 (pack of 10) $0.80
replaces OEM 62628-66
M12352
Original-Style Oil Pump Fittings
Original-style fittings used with some custom oil tanks to
convert nipples so stainless-steel braided lines may be used.
Set of 3.
12534 12533 Fit nylon and braided hose $7.99
12534 Fit steel and braided fixed-end lines $12.99
M12533
Custom Hose Clamps
Fits over oil and fuel lines. Available with chrome or blue
anodized finish. Sold in 6 packs.
270600 Chrome. Fits 3/8" and 5/16" I.D. hoses $4.33
(up to 5/8" O.D.)
270604 Blue. Fits 3/8" and 5/16" I.D. hoses (up $4.17
to 5/8" O.D.)
270601 Chrome. Fits 1/4" I.D. hose (up to 1/2" $4.17
270600 270604 O.D.)
270605 Blue. Fits 1/4" I.D. hose (up to 1/2" O.D.) $4.17
M270600
Custom Hose Clamps
These custom hose clamps feature a great look with reliable
function. Under each custom hose cover is a weather resistant
worm-drive hose clamp. Sold in packs of 6.
270606 3/8"-diameter. Slotted $4.33
270607 1/4"-diameter. Slotted $4.33
4 270608 3/8"-diameter. Grooved $4.17
270609
1/4"-diameter. Grooved
$4.17
M270606
Crimp Hose Clamps
OEM style hose clamps. Note: Diameters listed are before
270606 270607 270608 270609 crimping. Sold in packs of 50.
260482 17/32" (.531) diameter. Fits 1/4" I.D. $0.32
reinforced rubber fuel line and vent
hoses (repl. OEM 10014)
260483 19/32" (.594) diameter. Fits 5/16" I.D. $0.32
rubber remote brake reservoir hose
(repl. OEM 10038)
260484 11/16" (.687) diameter. Fits 3/8" I.D. $0.32
260482 260483 260484 260485 reinforced rubber oil and vent hoses
(repl. OEM 10020A)
260485 13/16" (.812) diameter. Fits all tank $0.32
drain hoses (repl. OEM 10086)

M260482
688250 688251 Oil Line Retainers for Twin Cam Models
Every time the oil lines are removed from the oil tank these
retainers should be replaced in order to avoid any leakage.
688250 Oil line retainers (pr) to engine OEM $16.47
63632-00
688251 Oil line retainers (pr) to tank OEM $16.44
63783-00

M688250
19883 Mini Hose Clamps
Quality clamps for all 7/32" to 5/8" O.D. hose.
19883 Card of 24 $0.83
19878 Box of 10 $0.70
M19883

*Prices shown are suggested retail prices only. Actual retail prices are determined by each dealer and may vary.
4.70 All parts are sold each unless otherwise noted. Retail prices may reflect an each quantity. Please see Cautionary Information in back of catalog.
