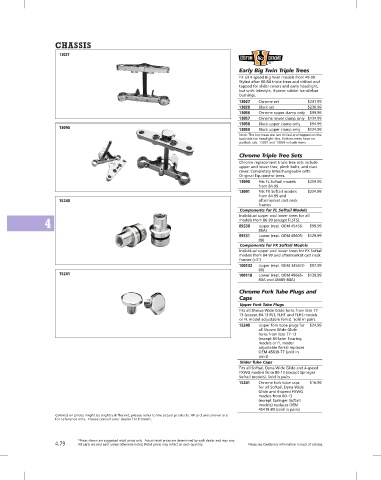

Page 280 - Custom Chrome Catalog

CHASSIS
09291 13027

Fork Tube and Slider Early Big Twin Triple Trees
Assemblies for Big Twins Fit all 4-speed Big Twin models from 49-99.
Styled after 60-84 triple trees and drilled and
Value-priced alternatives to the single disc leg
assemblies listed,complete with polished or tapped for slider covers and early headlight,
chrome-plated lower sliders. Includes but with latestyle, 4-piece rubber handlebar
hardchromed fork tubes, sliders, springs, caps, bushings.
and all internal components, completely 13027 Chrome set $241.99
assembled and ready-to-install. Sold in sets. 13028 Black set $236.99
Fit all FL Softail Models from 86-99 13056 Chrome upper clamp only $99.99
(except FLSTS)
13057 Chrome lower clamp only $134.99
09236 Polished, stock length $479.99 13058 Black upper clamp only $94.99
Fit FX Softail, Dyna Wide Glide and 98330 13090 13059 Black upper clamp only $124.99
4-Speed FXWG Models from 84-99
Note: The top trees are not drilled and tapped on the
09237 Polished, stock length $479.99 backside for headlight tins. Bottom trees have no
09260 Polished, -2" under stock $479.99 padlock tab. 13057 and 13059 include stem.
length
Chrome Triple Tree Sets
Custom Chrome Complete Fork Chrome replacement triple tree sets include
Tube Assemblies upper and lower tree, pinch bolts, and dust
cover. Completely interchangeable with
Come completely assembled, ready-to-install.
Ideal for restoration or replacing damaged Original Equipment trees.
Original Equipment parts. Assemblies include 13090 Fits FL Softail models $259.99
hard chrome fork tube, springs, cap, and all from 84-99
internal components including the damper 13091 Fits FX Softail models $224.99
rod. Sold each. from 84-99 and
Fit FX Softail, Dyna Wide Glide and 13029 15240 aftermarket cast neck
4-Speed FXWG Models from 84-99 frames
(except Deuce Models) Components for FL Softail Models
09291 Stock length $124.99 Individual upper and lower trees for all
08518 +2" over stock length $132.99 4 models from 86-99 (except FLSTS).
08519 +4" over stock length $129.99 09330 Upper (repl. OEM 45456- $99.99
08520 +6" over stock length $134.99 86A)
08521 +8" over stock length $137.99 09331 Lower (repl. OEM 45605- $129.99
88)
08522 +10" over stock length $139.99 CHASSIS Components for FX Softail Models
Fit 4-Speed FL Models 49-77 Individual upper and lower trees for FX Softail
09630 Stock length $139.99 models from 84-99 and aftermarket cast neck
Fit 4-Speed FXWG Models 80-83 frames (+3°)
09636 -4" under stock length $100.99 100132 Upper (repl. OEM 345672- $97.99
09650 -2" under stock length $94.99 Chrome‘Smooth’Triple Tree Set 80)
09635 Stock length $100.99 15241 100118 Lower (repl. OEM 45665- $139.99
Styled after their early FL model counterparts, these custom trees feature late-model rubber
Fit all FL Softail Models 86-99 handlebar bushings and chrome pinch bolts. The fork slider cover tabs have been removed and 80A and 45665-84A)
09292 Stock length $124.99 the outer edges have been polished to give a smooth, clean look. Includes a lower triple tree
cover like the one found on FXWG and Softail models, and it’s held in place with your bottom Chrome Fork Tube Plugs and
headlight mounting bolt.
’Smooth Top’ Chrome Billet 13029 Fits all 4-speed Big Twin and Softail models from 49-99 $280.99 Caps
Triple Tree Set Upper Fork Tube Plugs
Fits all Showa Wide Glide forks from late 77-
The ultimate custom triple tree.Sculpted by 13 (except 84-13 FLT, FLHT and FLHS models
stateof-the-art CNC-mills from aircraft quality or FL model adjustable forks). Sold in pairs.
aluminum. These trees not only have a mirror
polished chrome finish but also have custom 15240 Upper fork tube plugs for $24.99
smooth top stem nut system. Head cup all Showa Wide Glide
bearing tension is adjusted from the bottom forks from late 77-13
for the cleanest top clamp possible. Recessed (except 84-later Touring
underside headlight mount. All hardware, models or FL model
stem bolt, handlebar damper, and fork stops adjustable forks) replaces
are included. OEM 45838-77 (sold in
98330 Fits all cast neck frame $249.99 pairs)
applications using 41 Slider Tube Caps
mm fork tubes from 36- Fits all Softail, Dyna Wide Glide and 4-speed
99 (0°rake) FXWG models from 80-13 (except Springer
Softail models). Sold in pairs.
15241 Chrome fork tube caps $16.99
for all Softail, Dyna Wide
Glide and 4-speed FXWG
models from 80-13
(except Springer Softail
models) replaces OEM
45419-80 (sold in pairs)
Color(s) on photo might be slightly different, please refer to the actual products. All pictures shown are Color(s) on photo might be slightly different, please refer to the actual products. All pictures shown are
for reference only. Please consult your dealer for fitment. for reference only. Please consult your dealer for fitment.

www.customchrome.com 4.78 4.79 *Prices shown are suggested retail prices only. Actual retail prices are determined by each dealer and may vary. Please see Cautionary Information in back of catalog.
All parts are sold each unless otherwise noted. Retail prices may reflect an each quantity.
