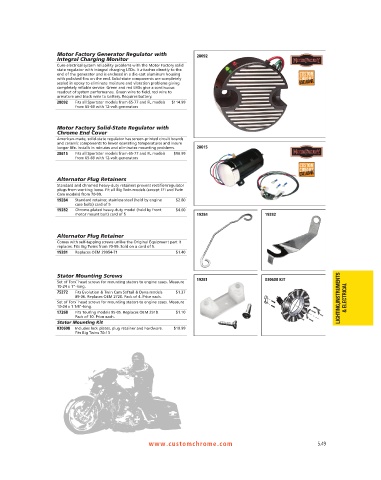

Page 379 - Custom Chrome Catalog

Motor Factory Generator Regulator with 28092
Integral Charging Monitor
Cure electrical system reliability problems with the Motor Factory solid
state regulator with integral charging LEDs. It attaches directly to the
end of the generator and is enclosed in a die-cast aluminum housing
with polished fins on the end. Solid-state components are completely
sealed in epoxy to eliminate moisture and vibration problems giving
completely reliable service. Green and red LEDs give a continuous
readout of system performance. Green wire to field, red wire to
armature and black wire to battery. Requires battery.
28092 Fits all Sportster models from 65-77 and FL models $114.99
from 65-69 with 12-volt generators

Motor Factory Solid-State Regulator with
Chrome End Cover
American-made, solid-state regulator has screen-printed circuit boards
and ceramic components to lower operating temperatures and insure
longer life. Installs in minutes and eliminates mounting problems. 28615
28615 Fits all Sportster models from 65-77 and FL models $96.99
from 65-69 with 12-volt generators

Alternator Plug Retainers
Standard and chromed heavy-duty retainers prevent rectifier/regulator
plugs from working loose. Fit all Big Twin models (except EFI and Twin
Cam models) from 70-99.
19284 Standard retainer, stainless steel (held by engine $2.80
case bolts) card of 5
19282 Chrome-plated heavy-duty model (held by front $4.60
motor mount bolt) card of 5 19284 19282

Alternator Plug Retainer
Comes with self-tapping screws unlike the Original Equipment part it
replaces. Fits Big Twins from 70-99. Sold on a card of 5.
19281 Replaces OEM 29954-71 $1.40

Stator Mounting Screws
19281 030608 KIT
Set of Torx¨ head screws for mounting stators to engine cases. Measure
10-24 x 1"-long.
75272 Fits Evolution & Twin Cam Softail & Dyna models $1.37
89-06. Replaces OEM 2720. Pack of 4. Price each. LIGHTING,INSTRUMENTS & ELECTRICAL
Set of Torx¨ head screws for mounting stators to engine cases. Measure
10-24 x 1 1/4"-long.
17268 Fits Touring models 95-05. Replaces OEM 2918. $1.10
Pack of 10. Price each.
Stator Mounting Kit
030608 Includes lock plates, plug retainer and hardware. $10.99
Fits Big Twins 70-13

www.customchrome.com 5.49
