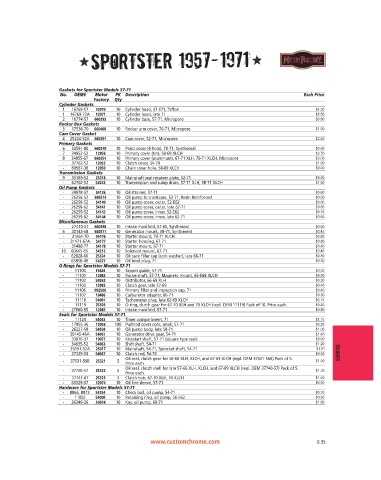

P. 505

Sportster 1957-1971








                       Gaskets for Sportster Models 57-71
                       No.  OEM#    Motor   PK  Description                                                     Each Price
                                   Factory  Qty
                       Cylinder Gaskets
                        1  16769-57  12070  10  Cylinder head, 57-E71, Teflon                                        $4.30
                        1  16769-72A  12071  10  Cylinder head, late 71                                             $5.50
                        2  16774-57  660392  10  Cylinder base, 57-71, Micropore                                    $0.80
                       Rocker Box Gaskets
                        3  17536-70  660408  10  Rocker arm cover, 70-71, Micropore                                 $1.00
                       Cam Cover Gasket
                        4  25224-52A  660391  10  Cam cover, 52-71, Micropore                                       $2.40
                       Primary Gaskets
                        6  32591-80  660370  10  Point cover (4-hole), 70-71, Syntheseal                            $0.60
                        7  34952-52  12958  10  Primary cover (tin), 58-69 XLCH                                     $2.70
                        8  34955-67  660354  10  Primary cover (aluminum), 67-71 XLH, 70-71 XLCH, Micropore         $3.00
                        -  37762-52  12052  10  Clutch cover, 54-70                                                 $1.00
                        -  60567-36  12050  10  Chain cover hole, 58-69 XLCH                                        $0.40
                       Transmission Gaskets
                        9  35169-52  25318  10  Mainshaft seal retainer plate, 52-71                                $0.50
                        -  62702-52  54223  10  Transmission and sump drain, 57-71 XLH, 58-71 XLCH                  $1.50
                       Oil Pump Gaskets
                        -  24978-57  54126  10  Oil strainer, 57-71                                                 $0.60
                        -  26256-52  660514  10  Oil pump to crankcase, 52-71, Resin Reinforced                     $0.60
                        -  26258-52  54140  10  Oil pump cover, outer, 52-E62                                       $0.60
                        -  26258-62  54141  10  Oil pump cover, outer, late 62-71                                   $0.80
                        -  26259-52  54143  10  Oil pump cover, inner, 52-E62                                       $0.70
                        -  26259-62  54144  10  Oil pump cover, inner, late 62-71                                   $0.60
                       Miscellaneous Gaskets
                        -  27410-57  660398  10  Intake manifold, 57-65, Syntheseal                                 $0.60
                        5  30143-58  660511  10  Generator mount, 58-71, Syntheseal                                 $0.45
                        -  31461-70  54176  10  Starter mount, 70-71 XLCH                                           $0.80
                        -  31471-67A  54177  10  Starter housing, 67-71                                             $0.80
                        -  31488-77  54178  10  Starter mount, 67-71                                                $0.40
                       10  60645-65  54212  10  Solenoid mount, 67-71                                               $0.45
                        -  62628-66  25334  10  Oil tank filler cap (cork washer), late 66-71                        $0.80
                        -  63858-49  54227  10  Oil level plug, 71                                                  $0.30
                       O-Rings for Sportster Models 57-71
                        -   11100   19484  10  Tappet guide, 57-71                                                  $0.20
                        -   11101   12082  10  Rockershaft, 57-71; Magneto mount, 65-E68 XLCH                       $0.30
                        -   11102   54263  10  Distributor, 66-69 XLH                                               $0.30
                        -   11103   12083  10  Clutch gear, late 57-69                                              $0.40
                        -   11106  092506  10  Primary filler and inspection cap, 71                                 $0.40
                        -   11107   19486  10  Carburetor adapter, 66-71                                            $0.30
                        -   11110   54001  10  Tachometer plug, late 62-69 XLCH                                     $0.15
                        -   11119   25303  10  O-ring, clutch gear for 67-70 XLH and 70 XLCH (repl. OEM 11119) Pack of 10. Price each.  $0.40
                        -  27060-55  12085  10  Intake manifold, 57-71                                              $0.80
                       Seals for Sportster Models 57-71
                        -   11124   54043  10  Timer compartment, 71                                                $1.15
                        -  17955-36  12058  100 Pushrod cover cork, small, 57-71                                    $0.59
                        -  26227-58  54058  10  Oil pump body, late 58-71                                           $1.00
                        -  30145-46A  54061  10  Generator drive gear, 54-71                                        $1.40
                        -  33076-37  19077  10  Kickstart shaft, 57-71 (square type seal)                           $0.60
                        -  34035-52  54063  10  Shift shaft, 54-71                                                  $1.20
                        -  35151-52A  25317  10  Mainshaft, 54-71; Sprocket shaft, 54-71                            $1.91
                        -  37339-53  54067  10  Clutch rod, 54-70                                                   $0.50    SERVICE
                                               Oil seal, clutch gear for 56-66 XLH, XLCH, and 67-69 XLCH (repl. OEM 37531-56B) Pack of 5.
                        -  37531-56B  25321  5                                                                      $1.00
                                               Price each.
                                               Oil seal, clutch shell for late 57-66 XLH, XLCH, and 67-69 XLCH (repl. OEM 37740-57) Pack of 5.
                        -  37740-57  25322  5                                                                       $1.20
                                               Price each.
                        -  37741-67  25323  5  Clutch hub, 67-70 XLH, 70 XLCH                                       $1.60
                        -  63529-57  12074  10  Oil line sleeve, 57-71                                              $0.30
                       Hardware for Sportster Models 57-71
                        -  8866, 8873  54254  10  Check ball, oil pump, 54-71                                       $0.70
                        -   11002   54000  10  Retaining ring, oil pump, 56-E62                                     $0.20
                        -  26340-36  54074  10  Key, oil pump, 60-71                                                $1.80
                      M12109
