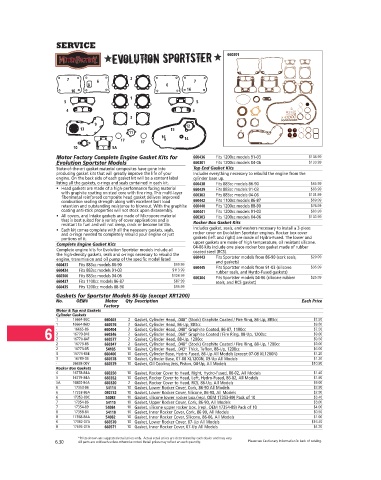

P. 500

SERVICE
                                          Evolution Sportster                       660301





                         7                      2
                                    6                                   7
                                 8                            6
                           16                                        16
                                                1
                        5                                               5
                         4                                             4
                                                3
                                   9                                 12
                              13                               15
                                                11
                                                            16      14
                                             17     17
                            10            5A
                      Motor Factory Complete Engine Gasket Kits for    660436   Fits 1200cc models 91-03         $108.99
                      Evolution Sportster Models                       660301   Fits 1200cc models 04-06         $133.99
                      State-of-the-art gasket material composites have gone into   Top End Gasket Kits
                      producing gasket kits that will greatly improve the life of your   Includes everything necessary to rebuild the engine from the
                      engine. On the back side of each gasket kit will be a content label   cylinder base up.
                      listing all the gaskets, o-rings and seals contained in each kit.   660438  Fits 883cc models 86-90   $65.99
                      •  Head gaskets are made of a high-performance facing material   660439  Fits 883cc models 91-03   $83.99
                       with graphite coating on steel core with fire ring. This multi-layer   660302  Fits 883cc models 04-06  $101.99
                       fiber/metal reinforced composite head gasket delivers improved
                       combustion sealing strength along with excellent bolt load   660442  Fits 1100cc models 86-87   $69.99
                       retention and outstanding resistance to blowout. With the graphite   660440  Fits 1200cc models 88-90   $76.99
                       coating anti-stick properties will not stock upon disassembly.  660441  Fits 1200cc models 91-03   $83.99
                      •  All covers, and intake gaskets are made of Micropore material   660303  Fits 1200cc models 04-06  $103.99
                       that is best suited for a variety of cover applications and is   Rocker Box Gasket Kits
                       resistant to fuel and will not creep, crack or become brittle.
                      •  Each kit comes complete with all the necessary gaskets, seals,   Includes gasket, seals, and washers necessary to install a 3-piece
                       and o-rings needed to completely rebuild your engine or just   rocker cover on Evolution Sportster engines. Rocker box cover
                       portions of it.                                 gaskets (left and right) are made of Hydro-Fused. The lower and
                      Complete Engine Gasket Kits                      upper gaskets are made of high temperature, oil resistant silicone.
                                                                       04-06 kits include one piece rocker box gasket made of rubber
                      Complete engine kits for Evolution Sportster models include all   coated steel (RCS).
                      the high-density gaskets, seals and o-rings necessary to rebuild the
                      engine, transmission and oil pump of the specific model listed  660443  Fits Sportster models from 86-90 (cork seals,   $29.99
                                                                                and gaskets)
                      660433  Fits 883cc models 86-90           $99.99  660445  Fits Sportster models from 91-03 (silicone   $35.99
                      660434  Fits 883cc models 91-03           $113.99         rubber seals, and Hyrdo-Fused gaskets)
                      660300  Fits 883cc models 04-06           $124.99  660304  Fits Sportster models 04-06 (silicone rubber   $25.99
                      660437  Fits 1100cc models 86-87          $87.99          seals, and RCS gasket)
                      660435  Fits 1200cc models 88-90          $95.99
                     Gaskets for Sportster Models 86-Up (except XR1200)
                     No.     OEM#      Motor   Qty Description                                                 Each Price
                                       Factory
                     Motor & Top end Gaskets
                     Cylinder Gaskets
                     1      16664-86C  660403   2  Gasket, Cylinder Head, .048“ (Stock) Graphite Coated / Fire Ring, 86-Up, 883cc  $7.50
                     1     16664-86D   660576   2  Gasket, Cylinder Head, 86-Up, 883cc                             $9.50
                     -      16665-86   660404   2  Gasket, Cylinder Head, .048“ Graphite Coated, 86-87, 1100cc     $7.50
                     2      16770-84E  660346   2  Gasket, Cylinder Head, .060“ Graphite Coated / Fire Ring, 88-Up, 1200cc  $9.00
                 6 2        16770-84F  660577   2  Gasket, Cylinder Head, 88-Up, 1200cc                            $9.50
                     2      16773-85   660347   2  Gasket, Cylinder Head, .048“ (Stock) Graphite Coated / Fire Ring, 88-Up, 1200cc  $9.00
                     2      16773-85    54105  10 Gasket, Cylinder Head, .043“ Thick, Teflon, 88-Up, 1200cc         $6.00
                     3      16774-86E  660406  10 Gasket, Cylinder Base, Hydro-Fused, 86-Up All Models (except 07-08 XL1200N)  $1.20
                     3      16789-04   660578  10 Gasket, Cylinder Base, 07-08 XL1200N, 09-Up All Models           $1.30
                     -      26638-00Y  660579  10 Gasket, Oil Cooling Jets, Piston, 04-Up, All Models             $10.90
                     Rocker Box Gaskets
                     4     16778-84A   660350  10 Gasket, Rocker Cover to Head, Right, Hydro-Fused, 86-02, All Models  $1.40
                     5     16779-84A   660352  10 Gasket, Rocker Cover to Head, Left, Hydro-Fused, 86-02, All Models  $1.90
                     5A    16800-84A   660320   2  Gasket, Rocker Cover to Head, RCS, 86-Up, All Models            $9.00
                     6      17353-86    54114  10 Gasket, Lower Rocker Cover, Cork, 86-90 All Models               $2.90
                     6      17353-86A  092732  10 Gasket, Lower Rocker Cover, Silicone, 86-90, All Models          $2.90
                     6      17353-89C  54083   10 Gasket, silicone lower rocker box.(repl. OEM 17353-89) Pack of 10  $3.40
                     7      17354-86    54115  10 Gasket, Upper Rocker Cover, Cork, 86-90, All Models              $3.00
                     7      17354-89   54084   10 Gasket, silicone upper rocker box. (repl. OEM 17354-89) Pack of 10  $4.00
                     8      17358-84    54118  10 Gasket, Inner Rocker Cover, Cork, 86-90, All Models              $0.50
                     8      17358-84A  54082   10 Gasket, Inner Rocker Cover, Silicone, 86-06, All Models          $1.00
                     6      17362-07A  660570  10 Gasket, Lower Rocker Cover, 07-Up All Models                    $16.40
                     8      17695-07A  660571  10 Gasket, Inner Rocker Cover, 07-Up All Models                     $4.20
                             *Prices shown are suggested retail prices only.  Actual retail prices are determined by each dealer and may vary.
                     6.30    All parts are sold each unless otherwise noted. Retail prices may reflect an each quantity.  Please see Cautionary Information in back of catalog.
