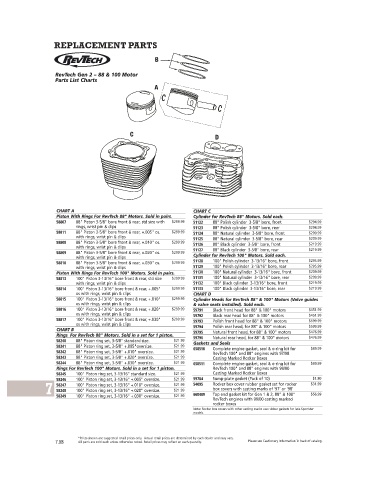

P. 562

B

                     RevTech Gen 2 – 88 & 100 Motor
                     Parts List Charts
                                                         A









                                                C
                                                                               D















                      CHART A                                          CHART C
                      Piston With Rings For RevTech 88" Motors. Sold in pairs.  Cylinder for RevTech 88" Motors. Sold each.
                      58807  88" Piston 3-5/8" bore front & rear, std size with   $299.99  51122  88" Polish cylinder  3-5/8" bore, front  $294.99
                             rings, wrist pin & clips                  51123  88" Polish cylinder  3-5/8" bore, rear  $294.99
                      58811  88" Piston 3-5/8" bore front & rear, +.005" os.   $299.99  51124  88" Natural cylinder  3-5/8" bore, front  $209.99
                             with rings, wrist pin & clips             51125  88" Natural cylinder  3-5/8" bore, rear  $209.99
                      58808  88" Piston 3-5/8" bore front & rear, +.010" os.   $299.99  51126  88" Black cylinder  3-5/8" bore, front  $219.99
                             with rings, wrist pin & clips                                                       $219.99
                      58809  88" Piston 3-5/8" bore front & rear, +.020" os.   $299.99  51127  88" Black cylinder  3-5/8" bore, rear
                             with rings, wrist pin & clips             Cylinder for RevTech 100" Motors. Sold each.
                      58810  88" Piston 3-5/8" bore front & rear, +.030" os.   $299.99  51128  100" Polish cylinder  3-13/16" bore, front  $295.99
                             with rings, wrist pin & clips             51129  100" Polish cylinder  3-13/16" bore, rear  $295.99
                      Piston With Rings For RevTech 100" Motors. Sold in pairs.  51130  100" Natural cylinder  3-13/16" bore, front  $209.99
                      58813  100" Piston 3-13/16" bore front & rear, std size   $299.99  51131  100" Natural cylinder  3-13/16" bore, rear  $209.99
                             with rings, wrist pin & clips             51132  100" Black cylinder  3-13/16" bore, front  $219.99
                      58814  100" Piston 3-13/16" bore front & rear, +.005"   $299.99  51133  100" Black cylinder  3-13/16" bore, rear  $219.99
                             os with rings, wrist pin & clips          CHART D
                      58815  100" Piston 3-13/16" bore front & rear, +.010"   $299.99  Cylinder Heads for RevTech 88" & 100" Motors (Valve guides
                             os with rings, wrist pin & clips          & valve seats installed). Sold each.
                      58816  100" Piston 3-13/16" bore front & rear, +.020"   $299.99  59791  Black front head for 88" & 100" motors  $451.99
                             os with rings, wrist pin & clips          59792  Black rear head for 88" & 100" motors  $451.99
                      58817  100" Piston 3-13/16" bore front & rear, +.030"   $299.99  59793  Polish front head for 88" & 100" motors  $599.99
                             os with rings, wrist pin & clips                                                    $599.99
                      CHART B                                          59794  Polish rear head, for 88" & 100" motors  $476.99
                                                                       59795
                                                                              Natural front head, for 88" & 100" motors
                      Rings  For RevTech 88" Motors. Sold in a set for 1 piston.  59796  Natural rear head, for 88" & 100" motors  $476.99
                      58240  88" Piston ring set, 3-5/8" standard size.   $21.99  Gaskets and Seals
                      58241  88" Piston ring set, 3-5/8" +.005"oversize.  $21.99  658510  Complete engine gasket, seal & o-ring kit for   $69.99
                      58242  88" Piston ring set, 3-5/8" +.010" oversize.  $21.99  RevTech 100" and 88" engines with 97/98
                      58243  88" Piston ring set, 3-5/8" +.020" oversize.  $21.99  Casting Marked Rocker Boxes
                      58244  88" Piston ring set, 3-5/8" +.030" oversize.  $21.99  658511  Complete engine gasket, seal & o-ring kit for   $69.99
                      Rings For RevTech 100" Motors. Sold in a set for 1 piston.  RevTech 100" and 88" engines with 99/00
                      58245  100" Piston ring set, 3-13/16" standard size.  $21.99  Casting Marked Rocker Boxes
                                                                                                                   $1.80
                      58246  100" Piston ring set, 3-13/16" +.005" oversize.  $21.99  59784  Sump-plate gasket (Pack of 10)  $31.99
                 7    58247  100" Piston ring set, 3-13/16" +.010" oversize.  $21.99  54095  Rocker box cover rubber gasket set for rocker
                                                                              box covers with casting marks of ‘97’ or ‘98’
                      58248
                             100" Piston ring set, 3-13/16" +.020" oversize.
                                                                $21.99
                      58249  100" Piston ring set, 3-13/16" +.030" oversize.  $21.99  660489  Top end gasket kit for Gen 1 & 2, 88” & 100”   $56.99
                                                                              RevTech engines with 99/00 casting marked
                                                                              rocker boxes
                                                                       Note: Rocker box covers with other casting marks use rubber gaskets for late Sportster
                                                                       models.
                             *Prices shown are suggested retail prices only.  Actual retail prices are determined by each dealer and may vary.
                     7.08    All parts are sold each unless otherwise noted. Retail prices may reflect an each quantity.  Please see Cautionary Information in back of catalog.
