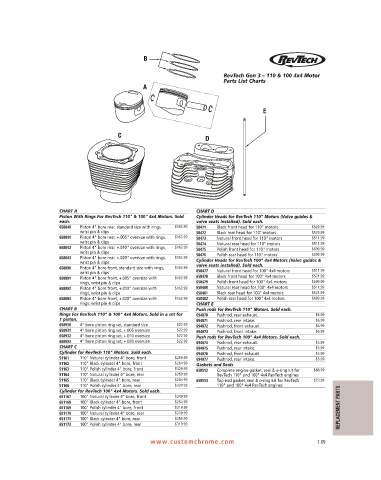

Page 563 - Custom Chrome Catalog

B

RevTech Gen 3 – 110 & 100 4x4 Motor
Parts List Charts
A

E

C
D

CHART A CHART D
Piston With Rings For RevTech 110" & 100" 4x4 Motors. Sold Cylinder Heads for RevTech 110" Motors (Valve guides &
each. valve seats installed). Sold each.
658840 Piston 4" bore rear, standard size with rings, $163.99 58471 Black front head for 110" motors $529.99
wrist pin & clips 58472 Black rear head for 110" motors $529.99
658841 Piston 4" bore rear, +.005" oversize with rings, $163.99 58473 Natural front head for 110" motors $511.99
wrist pin & clips 58474 Natural rear head for 110" motors $511.99
658842 Piston 4" bore rear, +.010" oversize with rings, $163.99 58475 Polish front head for 110" motors $699.99
wrist pin & clips $699.99
658843 Piston 4" bore rear, +.020" oversize with rings, $163.99 58476 Polish rear head for 110" motors
wrist pin & clips Cylinder Heads for RevTech 100" 4x4 Motors (Valve guides &
658890 Piston 4" bore front, standard size with rings, $163.99 valve seats installed). Sold each. $511.99
wrist pin & clips 658477 Natural front head for 100" 4x4 motors
658891 Piston 4" bore front, +.005" oversize with $163.99 658478 Black front head for 100" 4x4 motors $521.99
rings, wrist pin & clips 658479 Polish front head for 100" 4x4 motors $699.99
658892 Piston 4" bore front, +.010" oversize with $163.99 658480 Natural rear head for 100" 4x4 motors $511.99
rings, wrist pin & clips 658481 Black rear head for 100" 4x4 motors $521.99
658893 Piston 4" bore front, +.020" oversize with $163.99 658482 Polish rear head for 100" 4x4 motors $699.99
rings, wrist pin & clips CHART E
CHART B Push rods for RevTech 110" Motors. Sold each.
Rings For RevTech 110" & 100" 4x4 Motors. Sold in a set for 694070 Pushrod, rear exhaust. $6.99
1 piston. 694071 Pushrod, rear intake. $6.99
658930 4" bore piston ring set, standard size $22.99 694072 Pushrod, front exhaust. $6.99
658931 4" bore piston ring set, +.005 oversize $22.99 694073 Pushrod, front intake. $6.99
658932 4" bore piston ring set, +.010 oversize $22.99 Push rods for RevTech 100" 4x4 Motors. Sold each.
658933 4" bore piston ring set, +.020 oversize $22.99 694074 Pushrod, rear exhaust. $5.99
CHART C 694075 Pushrod, rear intake. $5.99
Cylinder for RevTech 110" Motors. Sold each. 694076 Pushrod, front exhaust. $5.99
51161 110" Natural cylinder 4" bore, front $259.99 694077 Pushrod, rear intake. $5.99
51162 110" Black cylinder 4" bore, front $264.99 Gaskets and Seals
51163 110" Polish cylinder 4" bore, front $329.99 658512 Complete engine gasket, seal & o-ring kit for $88.99
51164 110" Natural cylinder 4" bore, rear $259.99 RevTech 110" and 100" 4x4 RevTech engines
51165 110" Black cylinder 4" bore, rear $264.99 658513 Top end gasket, seal & o-ring kit for RevTech $73.99
51166 110" Polish cylinder 4" bore, rear $329.99 110" and 100" 4x4 RevTech engines
Cylinder for RevTech 100" 4x4 Motors. Sold each.
651167 100" Natural cylinder 4" bore, front $249.99
651168 100" Black cylinder 4" bore, front $254.99
651169 100" Polish cylinder 4" bore, front $319.99 REPLACEMENT PARTS
651170 100" Natural cylinder 4" bore, rear $249.99
651171 100" Black cylinder 4" bore, rear $254.99
651172 100" Polish cylinder 4" bore, rear $319.99
