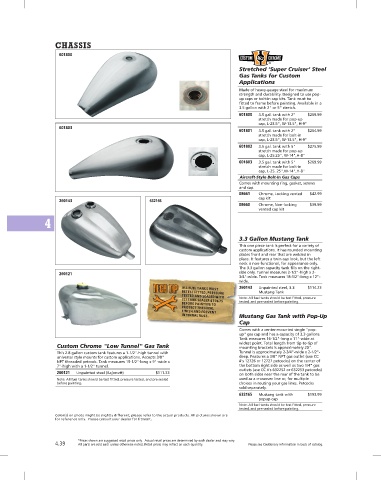

Page 240 - Custom Chrome Catalog

CHASSIS
88120 601800

Custom Stretched Gas Tank Stretched ‘Super Cruiser’ Steel
Uniquely-styled tank provides an affordable Gas Tanks for Custom
option in defining your ultimate hand-built Detail of Gas Cap Applications
custom chopper. Features a long, tapered
shape with a raised custom fuel bung. Includes Made of heavy-gauge steel for maximum
5-bullet style cap. Shipped with custom strength and durability. Designed to use pop-
mounting brackets to weld to the frame. Fuel up caps or bolt-in cap kits. Tank must be
capacity is approximately 3.5 gallons. Tank fitted to frame before painting. Available in a
measurements: Length-23", Width-12", 3.5 gallon with 2" or 5" stretch.
Height-8-1/2", Tunnel length 21-7/8"
601800 3.5 gal. tank with 2" $269.99
88120 Fits most aftermarket $299.99 stretch made for pop-up
frames with a minimum cap, L-23.5", W-13.5", H-9"
of a 3" stretch in the 600155 601803
backbone and a 4" 601801 3.5 gal. tank with 2" $264.99
stretch in the front stretch made for bolt-in
downtubes (frame cap, L-23.5", W-13.5", H-9"
backbone diameters 601802 3.5 gal. tank with 5" $275.99
cannot exceed 2")
stretch made for pop-up
689990 Replacement 5 bullet $71.99 cap, L-25.25", W-14",H-8"
popup gas cap
601803 3.5 gal. tank with 5" $269.99
stretch made for bolt-in
cap, L-25. 25",W-14",H-8"
Custom ‘Bobber Style Gas Aircraft-Style Bolt-In Gas Caps
Tanks’ by Cole Foster Comes with mounting ring, gasket, screws
An absolutely beautiful new tank designed and cap.
with the keen styling of Cole Foster-Salinas 08661 Chrome, Locking vented $42.99
Boyz Customs. The tanks feature a mini pop- cap kit
up gas cap, and a unique raised tapered bead 260143 632165 08660 $39.99
down the center of the tank. Each tank has Chrome, Non-locking
been designed to fit to stock frames but can vented cap kit
also be easily adapted to any custom
application. They use the existing stock rubber
mounts. Fuel capacity is 2.35 gallons. 4
600155 Fits Evolution Softail $283.99
models from 84-99 and
4-speed FX and FL 3.3 Gallon Mustang Tank
models and custom CHASSIS This one piece tank is perfect for a variety of
applications. custom applications. It has rounded mounting
Note: These applications require the front frame dash plates front and rear that are welded in
mount to be cut off and rear screw hole modified. place. It features a twin cap look, but the left
600157 Fits carburated Twin Cam $266.99 neck is non-functional, for appearance only.
88 Softail models from The 3.3 gallon capacity tank fills on the right-
00-06 600157 643240 260121 side only. Tunnel measures 2-1/2"-high x 2-
Replacement Gas Caps 3/4"-wide. Tank measures 18-1/2"-long x 12"-
wide.
47775 Stainless Steel $63.99
ALL FUEL TANKS MUST 260143 Unpainted steel, 3.3 $114.23
Mustang Tank
BETEST FITTED, PRESSURE
TESTED AND SEALED WITH
Note: All fuel tanks should be test fitted, pressure
Petcock Adaptor CCI TANK SEALER 670675 tested, and pre-sealed before painting.
BEFORE PAINTING TO
Allows the use of a 22mm petcock in a fuel PROTECT THE FINAL
tank designed for Delphi fuel injection. FINISH AND PREVENT
Accepts any petcock that installs using a 22mm INTERNAL RUST. Mustang Gas Tank with Pop-Up
nut, chrome finish and includes o-ring. Sold Cap
each.
Comes with a center-mounted single "pop-
643240 22mm petcock adaptor $9.99
up" gas cap and has a capacity of 3.3 gallons.
Tank measures 16-1/2"-long x 11"-wide at
widest point. Total length from tip-to-tip of
Custom Chrome "Low Tunnel" Gas Tank mounting brackets is approximately 20".
This 2.8 gallon custom tank features a 1-1/2"-high tunnel with Tunnel is approximately 2-3/4"-wide x 2-1/2"-
universal style mounts for custom applications. Accepts 3/8" deep. Features a 3/8" NPT gas outlet (use CC
ALL FUEL TANKS MUST #'s 12726 or 12727 petcocks) on the center of
NPT threaded petcock. Tank measures 15-1/2"-long x 9"-wide x
BETEST FITTED, PRESSURE the bottom right side as well as two 1/4" gas
7"-high with a 1-1/2" tunnel.
TESTED AND SEALED WITH outlets (use CC #'s 632252 or 632253 petcocks)
CCI TANK SEALER 670675 260121 Unpainted steel (Bajonett) $111.33 on both sides near the rear of the tank to be
BEFORE PAINTING TO
PROTECT THE FINAL Note: All fuel tanks should be test fitted, pressure tested, and pre-sealed used as a crossover line or, for multiple
FINISH AND PREVENT before painting. choices in routing your gas lines. Petcocks
INTERNAL RUST. sold separately.
632165 Mustang tank with $193.99
popup cap
Note: All fuel tanks should be test fitted, pressure
tested, and pre-sealed before painting.
Color(s) on photo might be slightly different, please refer to the actual products. All pictures shown are Color(s) on photo might be slightly different, please refer to the actual products. All pictures shown are
for reference only. Please consult your dealer for fitment. for reference only. Please consult your dealer for fitment.

www.customchrome.com 4.38 4.39 *Prices shown are suggested retail prices only. Actual retail prices are determined by each dealer and may vary. Please see Cautionary Information in back of catalog.
All parts are sold each unless otherwise noted. Retail prices may reflect an each quantity.
