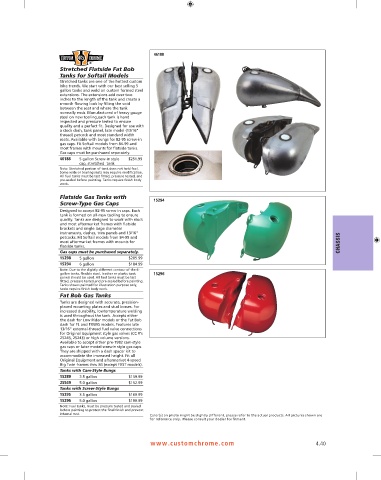

Page 241 - Custom Chrome Catalog
P. 241
CHASSIS
46188 25568
Stretched Flatside Fat Bob 3.5 Gallon Hand Shift Gas
Tanks for Softail Models Tanks
Stretched tanks are one of the hottest custom Two versions of the obsolete hand shift style
bike trends. We start with our best selling 5 3.5 gallon gas tank sets. Accurate placement
gallon tanks and weld on custom formed steel of the shifter gate lugs and shut-off rod hole
extensions. The extensions add over two centers ensures trouble-free service. Available
inches to the length of the tank and create a in two versions. One is a totally accurate
smooth flowing look by filling the void reproduction of the original, rod-style gas
between the seat and where the tank shut-off equipped tank used from 48-65. The
normally ends. Manufactured of heavy gauge other is based on the same tank, but
steel on new tooling,each tank is hand eliminates the early style gas shutoff rod
inspected and pressure tested to ensure system and replaces it with the tank bottom
quality and a perfect fit. Designed for use with 15696 25551 fitting for the late 13/16" external-thread
a stock dash, tank panel, late model (13/16" petcock. Both tanks accept the correct cam-
thread) petcock and most standard width style gas caps and are designed to accept the
seats. Available with bungs for 82-95 screw-in stock shifter guide. (Sold separately.)
gas caps. Fit Softail models from 84-99 and 25568 Original style with rod $219.99
most frames with mounts for flatside tanks.
Gas caps must be purchased separately. shut-off (shown)
25569 Updated style for 75-07 $219.99
46188 5 gallon Screw-in style $251.99
cap, stretched tank petcock
Note: Stretched portion of tank does not hold fuel. Custom Smooth-Top Gas
Some wide or touring seats may require modification.
All fuel tanks must be test fitted, pressure tested, and Tanks for FXR Models
pre-sealed before painting. Tanks require finish body Our 2" stretch tanks are new stampings
work.
rather than using welded tips to achieve
stretch. They come with flush-mount locking
gas cap (included). Single cap tanks have inlet
Flatside Gas Tanks with 15294 43002001 43003001 offset to the right side. Tanks fit all models
Screw-Type Gas Caps from 82-99 and have a 4.0 gallon capacity.
Models with stock turn signals mounted to
Designed to accept 82-95 screw in caps. Each the top triple tree must relocate them to
tank is formed on all-new tooling to ensure avoid contact with the tank.
quality. Tanks are designed to work with stock
and most aftermarket frames with flatside 4 15696 2" stretch with single $442.99
brackets and single large diameter flush locking cap
instruments, dashes, trim panels and 13/16" Fat Bob Gas Tank for FXR
petcocks. Fit Softail models from 84-99 and
most aftermarket frames with mounts for CHASSIS Models
flatside tanks. Classic Fat Bob look for all FXR models from
Gas caps must be purchased separately. 82-99. It has the appearance of split tanks,but
is really a one piece welded tank with twin
15298 5 gallon $205.99 screw type filler necks,and 13/16" external
15294 6 gallon $184.99 thread gas valve fitting. Bolts directly to the
stock mounts and accepts all FL-style dash
Note: Due to the slightly different contour of the 6-
gallon tanks, flexible steel, leather or plastic tank 15296 43004001 assemblies (except Cateye) when the
panels should be used. All fuel tanks must be test appropriate dash base is used. Included with
fitted, pressure tested,and pre-sealed before painting. each tank is a superflex speedo cable and a
Tanks shown painted for illustration purpose only, chrome tank divider panel (dash and speedo
tanks require finish body work.
sold separately). The tanks are even equipped
Fat Bob Gas Tanks with internal emission control system
connections, for use on vehicles WITH fuel
Tanks are designed with accurate, precision- tank emission devices (i.e., California models).
placed mounting plates and stud bosses. For
increased durability, lowtemperature welding 25551 4-gallon Fat Bob gas tank $274.99
is used throughout the tank. Accepts either for FXR models
the dash for Low Rider models or the Fat Bob Note: CC #25551 tanks require removal of solder from
dash for FL and FXWG models. Features late vent tube prior to installation on vehicle when
13/16" external-thread fuel valve connections connecting fuel tank emissions control devices.
for Original Equipment style gas valves (CC #'s Stretched Custom Gas Tank
25245, 25243) or high volume versions.
Available to accept either pre-1982 cam-style Manufactured from heavy gauge steel on
gas caps or later model screwin style gas caps. new tooling. This one-piece tank is perfect for
They are shipped with a dash spacer kit to a variety of custom applications. Each tank
accommodate the increased height. Fit all comes with a gas cap and is factory pressure
Original Equipment and aftermarket 4-speed tested and corrosion protected and sealed.
Big Twin frames thru 84 (except FXST models). The tank must be fitted to frame before
painting.
Tanks with Cam-Style Bungs
For Carburated Models; Primer Gray
15289 3.5 gallon $159.99
43002001 4.7 gallons, L-28.5", W- $259.99
25549 5.0 gallon $152.99 14.5", H-9"
Tanks with Screw-Style Bungs 43003001 4.5 gallons, L-23.62", W- $259.99
15295 3.5 gallon $169.99 14.57", H-9.45"
15296 5.0 gallon $199.99 43004001 4.7 gallons, L-22.64", W- $259.99
15.16", H-9.45"
Note: Fuel tanks, must be pressure tested and sealed
before painting to protect the final finish and prevent
internal rust.
Color(s) on photo might be slightly different, please refer to the actual products. All pictures shown are Color(s) on photo might be slightly different, please refer to the actual products. All pictures shown are
for reference only. Please consult your dealer for fitment. for reference only. Please consult your dealer for fitment.
www.customchrome.com 4.40 4.41 *Prices shown are suggested retail prices only. Actual retail prices are determined by each dealer and may vary. Please see Cautionary Information in back of catalog.
All parts are sold each unless otherwise noted. Retail prices may reflect an each quantity.
