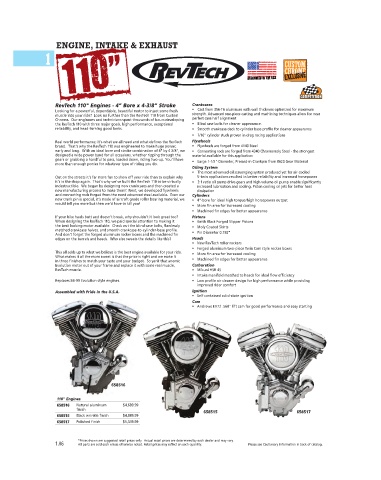

Page 18 - Custom Chrome Catalog

ENGINE, INTAKE & EXHAUST
110”
1

RevTech 110" Engines - 4” Bore x 4-3/8” Stroke Crankcases
Looking for a powerful, dependable, beautiful motor to inject some fresh • Cast from 356-T6 aluminum with wall thickness optimized for maximum
muscle into your ride? Look no further than the RevTech 110 from Custom strength. Advanced one-piece casting and machining techniques allow for near
Chrome. Our engineers and technicians spent thousands of hours developing perfect case half alignment
the RevTech 110 with three major goals, high performance, exceptional • Blind case bolts for cleaner appearance.
reliability, and head-turning good looks. • Smooth crankcase deck to cylinder base profile for cleaner appearance
• 7/16" cylinder studs proven in drag racing applications
Real world performance; it’s what we all need and what defines the RevTech Flywheels
brand. That’s why the RevTech 110 was engineered to make huge power, • Flywheels are forged from 4140 Steel
early and long. With an ideal bore and stroke combination of 4" by 4 3/8", we • Connecting rods are forged from 4340 Chromemoly Steel - the strongest
designed a wide power band for all occasions, whether ripping through the material available for this application
gears or grabbing a handful to pass, loaded down, riding two-up. You’ll have • Large 1-1/2"-Diameter, Pressed-in Crankpin from 8620 Gear Material
more than enough ponies for whatever type of riding you do.
Oiling System
• The most advanced oil scavenging system produced yet for air-cooled
Out on the streets it’s far more fun to show off your ride than to explain why V-twin applications resulted in better reliability and increased horsepower
it’s in the shop again. That’s why we’ve built the RevTech 110 to be virtually • 3:1 ratio oil pump drive gears and high volume oil pump enable significantly
indestructible. We began by designing new crankcases and then created a increased lubrication and cooling. Piston cooling oil jets for better heat
new manufacturing process to make them! Next, we developed flywheels dissipation
and connecting rods forged from the most advanced steel available. Even our Cylinders
new crank pin is special, it’s made of aircraft grade roller bearing material, we • 4"-bore for ideal high torque/high horsepower output
would tell you more but then we’d have to kill you! • More fin area for increased cooling
• Machined fin edges for better appearance
If your bike hauls butt and doesn’t break, why shouldn’t it look great too? Pistons
When designing the RevTech 110, we paid special attention to making it • Keith Black Forged Slipper Pistons
the best looking motor available. Check out the blind case bolts, flawlessly • Moly Coated Skirts
matched crankcase halves, and smooth crankcase-to-cylinder-base profile. • Pin Diameter 0.792"
And don’t forget the forged aluminum rocker boxes and the machined fin
edges on the barrels and heads. Who else sweats the details like this? Heads
• New RevTech roller rockers
• Forged aluminum two-piece Twin Cam style rocker boxes
This all adds up to what we believe is the best engine available for your ride. • More fin area for increased cooling
What makes it all the more sweet is that the price is right and we make it
in three finishes to match your taste and your budget. So yank that anemic • Machined fin edges for better appearance
Evolution motor out of your frame and replace it with some real muscle, Carburetion
RevTech muscle. • Mikuni HSR 45
• Intake manifold matched to heads for ideal flow efficiency
Replaces 84-99 Evolution style engines. • Low profile air cleaner design for high performance while providing
improved rider comfort
Assembled with Pride in the U.S.A. Ignition
• Self contained solid-state ignition
Cam
• Andrews EV72 .560" lift cam for good performance and easy starting
M_RevTech_Engine110_01

658516

110" Engines
658516 Natural aluminum $4,689.99
finish 658515 658517
658515 Black wrinkle finish $4,889.99
658517 Polished finish $5,349.99
M658516

*Prices shown are suggested retail prices only. Actual retail prices are determined by each dealer and may vary.
1.06 All parts are sold each unless otherwise noted. Retail prices may reflect an each quantity. Please see Cautionary Information in back of catalog.
