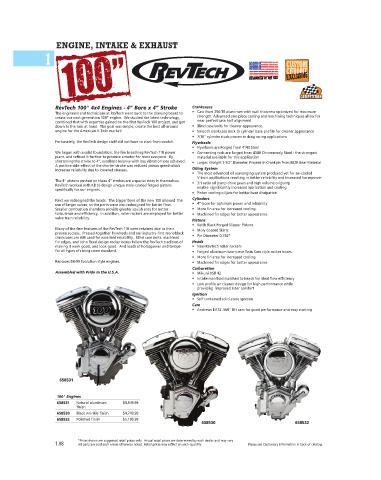

RevTech 100" 4x4 Engines - 4” Bore x 4” Stroke Crankcases
The engineers and technicians at RevTech went back to the drawing board to • Cast from 356-T6 aluminum with wall thickness optimized for maximum
create our next generation 100" engine. We studied the latest technology, strength. Advanced one-piece casting and machining techniques allow for
combined that with expertise gained on the first RevTech 100 project, and got near perfect case half alignment
down to the task at hand. The goal was simple; create the best all-around • Blind case bolts for cleaner appearance.
engine for the American V-Twin market! • Smooth crankcase deck to cylinder base profile for cleaner appearance
• 7/16" cylinder studs proven in drag racing applications
Fortunately, the RevTech design staff did not have to start from scratch. Flywheels
• Flywheels are Forged from 4140 Steel
We began with a solid foundation, the fire breathing RevTech 110 power • Connecting rods are forged from 4340 Chromemoly Steel - the strongest
plant, and refined it further to produce a motor for most everyone. By material available for this application
shortening the stroke to 4", excellent balance with less vibration was achieved. • Larger, straight 1-1/2" Diameter, Pressed-in Crankpin from 8620 Gear Material
A positive side-effect of the shorter stroke was reduced piston speed which
increases reliability due to lowered stresses. Oiling System
• The most advanced oil scavenging system produced yet for air-cooled
V-twin applications resulting in better reliability and increased horsepower
The 4" pistons pushed on these 4" strokes are a special story in themselves. • 3:1 ratio oil pump drive gears and high volume oil pump
RevTech worked with KB to design unique moly-coated forged pistons enable significantly increased lubrication and cooling
specifically for our engines.
• Piston cooling oil jets for better heat dissipation
Next we redesigned the heads. The bigger bore of the new 100 allowed the Cylinders
use of larger valves, so the ports were also redesigned for better flow. • 4"-bore for optimum power and reliability
Smaller combustion chambers provide greater squish area for better • More fin area for increased cooling.
turbulence and efficiency. In addition, roller rockers are employed for better • Machined fin edges for better appearance
valve train reliability.
Pistons
• Keith Black Forged Slipper Pistons
Many of the fine features of the RevTech 110 were retained due to their • Moly Coated Skirts
proven success. Pressed-together flywheels and our industry-first monoblock
crankcases are still used for excellent reliability. Blind case bolts, machined • Pin Diameter 0.792"
fin edges, and John Reed design rocker boxes follow the RevTech tradition of Heads
making it work good, and look good. And loads of horsepower and torque • New RevTech roller rockers
for all types of riding come standard. • Forged aluminum two-piece Twin Cam style rocker boxes
• More fin area for increased cooling
Replaces 84-99 Evolution style engines. • Machined fin edges for better appearance
Carburetion
Assembled with Pride in the U.S.A. • Mikuni HSR 42
• Intake manifold matched to heads for ideal flow efficiency
• Low profile air cleaner design for high performance while
providing improved rider comfort
Ignition
• Self contained solid-state ignition
Cam
• Andrews EV72 .560" lift cam for good performance and easy starting
M_RevTech_Engine100_01

658531

100" Engines
658531 Natural aluminum $4,549.99
finish
658530 Black wrinkle finish $4,749.99
658532 Polished finish $5,199.99
658530 658532
M658531
