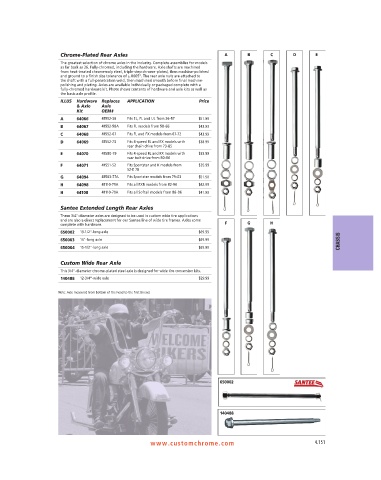

Page 403 - Custom Chrome Catalog

Chrome-Plated Rear Axles A B C D E
The greatest selection of chrome axles in the industry. Complete assemblies for models
as far back as 36. Fully-chromed, including the hardware. Axle shafts are machined
from heat-treated chromemoly steel, triple-step chrome-plated, then machine-polished
and ground to a finish size tolerance of ±.0005". The rear axle nuts are attached to
the shaft with a full-penetration weld, then machined smooth before final machine-
polishing and plating. Axles are available individually or packaged complete with a
fully-chromed hardware kit. Photo shows contents of hardware and axle kits as well as
the basic axle profile.
ILLUS Hardware Replaces APPLICATION Price
& Axle Axle
Kit OEM#
A 64066 41552-36 Fits EL, FL and UL from 36-57 $51.99
B 64067 41552-58A Fits FL models from 58-66 $43.93
C 64068 41552-67 Fits FL and FX models from 67-72 $43.99
D 64069 41552-73 Fits 4-speed FL and FX models with $38.99
rear chain drive from 73-85
E 64070 41580-79 Fits 4-speed FL and FX models with $33.99
rear belt drive from 80-86
F 64071 41551-52 Fits Sportster and K models from $35.99
52-E 78
G 64094 41563-77A Fits Sportster models from 79-03 $51.58
H 64098 41110-79A Fits all FXR models from 82-94 $42.99
H 64108 41110-79A Fits all Softail models from 86-06 $41.99
M64021
Santee Extended Length Rear Axles
These 3/4"-diameter axles are designed to be used in custom wide tire applications
and are also a direct replacement for our Santee line of wide tire frames. Axles come
complete with hardware. F G H
650002 13-1/2"-long axle $69.99
650003 14"-long axle $69.99 CHASSIS
650004 15-1/2"-long axle $69.99
M650002
Custom Wide Rear Axle
This 3/4"-diameter chrome-plated steel axle is designed for wide tire conversion kits.
140488 12-3/4"-wide axle $29.99
M140488
Note: Axle measured from bottom of the head to the first thread.

650002

140488

www.customchrome.com 4.151
