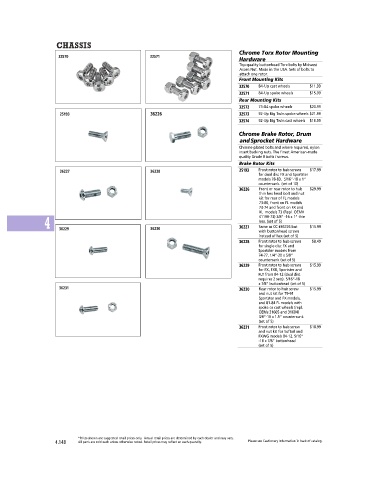

P. 400
CHASSIS
Chrome Torx Rotor Mounting
32570 32571
Hardware
Top-quality buttonhead Torx bolts by Midwest
Acorn Nut. Made in the USA. Sets of bolts to
attach one rotor.
Front Mounting Kits
32570 84-Up cast wheels $11.99
32571 84-Up spoke wheels $15.99
Rear Mounting Kits
32572 73-84 spoke wheels $20.99
25193 36226 32573 92-Up Big Twin spoke wheels $21.99
32574 92-Up Big Twin cast wheels $16.99
M32570
Chrome Brake Rotor, Drum
and Sprocket Hardware
Chrome-plated bolts and where required, nylon
insert backing nuts. The finest American-made
quality Grade 8 bolts / screws.
Brake Rotor Kits
36227 36228 25193 Front rotor to hub screws $17.99
for dual disc FX and Sportster
models 78-83. 5/16“-18 x 1“
countersunk. (set of 10)
36226 Front or rear rotor to hub $29.99
thin hex head bolt and nut
kit for rear of FL models
73-80, front on FL models
73-74 and front on FX and
XL models 73 (Repl. OEM#
4 hex. (set of 5)
41198-73) 3/8“ -16 x 1“ thin
Same as CC #36226 but
36227
36230
36229
with buttonhead screws $15.99
instead of hex (set of 5)
36228 Front rotor to hub screws $8.49
for single disc FX and
Sportster models from
74-77. 1/4“-20 x 5/8“
countersunk (set of 5)
36229 Front rotor to hub screws $15.99
for FX, FXR, Sportster and
FLT from 84-12 (dual disc
requires 2 sets). 5/16“-18
x 7/8“ buttonhead (set of 5)
36231 36230 Rear rotor to hub screw $15.99
and nut kit for 79-91
Sportster and FX models,
and 81-84 FL models with
spoke or cast wheels (repl.
OEMs 31605 and 31604)
3/8“-16 x 1.5“ countersunk
(set of 5)
36231 Front rotor to hub screw $18.99
and nut kit for Softail and
FXWG models 84-12. 5/16“
-18 x 7/8“ buttonhead
(set of 5)
*Prices shown are suggested retail prices only. Actual retail prices are determined by each dealer and may vary.
4.148 All parts are sold each unless otherwise noted. Retail prices may reflect an each quantity. Please see Cautionary Information in back of catalog.
