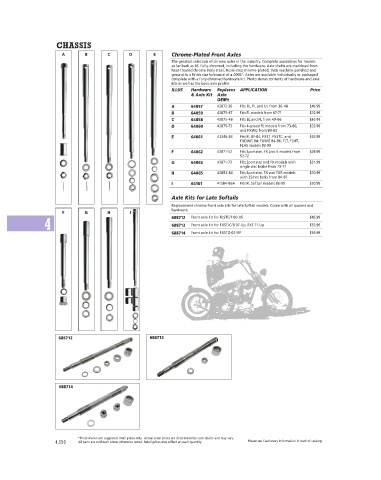

Page 402 - Custom Chrome Catalog

CHASSIS

A B C D E Chrome-Plated Front Axles
The greatest selection of chrome axles in the industry. Complete assemblies for models
as far back as 36. Fully-chromed, including the hardware. Axle shafts are machined from
heat-treated chrome moly steel, triple-step chrome-plated, then machine-polished and
ground to a finish size tolerance of ±.0005". Axles are available individually or packaged
complete with a fully-chromed hardware kit. Photo shows contents of hardware and axle
kits as well as the basic axle profile.
ILLUS Hardware Replaces APPLICATION Price
& Axle Kit Axle
OEM#
A 64057 43872-36 Fits EL, FL and UL from 36-48 $46.99
B 64059 43875-67 Fits FL models from 67-71 $32.99
C 64058 43875-48 Fits EL and FL from 49-66 $40.99
D 64060 43875-73 Fits 4-speed FL models from 73-80, $32.99
and FXWG from 80-83
E 64061 43346-83 Fits FL 81-84; FXST, FXSTC, and $35.99
FXDWG 84; FXWG 84-86; FLT, FLHT,
FLHS models 83-99
F 64062 43871-52 Fits Sportster, FX and K models from $28.99
52-72
G 64063 43871-73 Fits Sportster and FX models with $31.99
single disc brake from 73-77
H 64065 43883-84 Fits Sportster, FX and FXR models $30.99
with 35mm forks from 84-87
I 64101 41584-86A Fits FL Softail models 86-99 $50.99
M64013
Axle Kits for Late Softails
Replacement chrome front axle kits for late Softail models. Come with all spacers and
hardware.
F G H I Front axle kit for FLSTC/F 00-05 $45.99
4 688712 Front axle kit for FXST/C/B 07-Up, FXS 11-Up $52.99
688713
688714 Front axle kit for FXSTD 07-UP $55.99
M688712

688712 688713

688714

*Prices shown are suggested retail prices only. Actual retail prices are determined by each dealer and may vary.
4.150 All parts are sold each unless otherwise noted. Retail prices may reflect an each quantity. Please see Cautionary Information in back of catalog.
