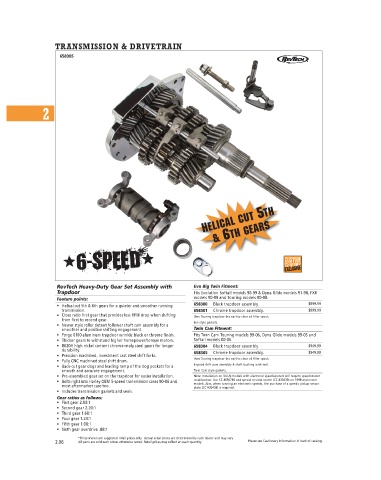

Page 92 - Custom Chrome Catalog

TRANSMISSION & DRIVETRAIN

658305

2

Helical Cut 5th

& 6th Gears

6-SPEED

RevTech Heavy-Duty Gear Set Assembly with Evo Big Twin Fitment:
Trapdoor Fits Evolution Softail models 90-99 & Dyna Glide models 91-98, FXR
Feature points: models 90-99 and Touring models 90-98.
• Helical cut 5th & 6th gears for a quieter and smoother running 658300 Black trapdoor assembly. $899.99
transmission. 658301 Chrome trapdoor assembly. $899.99
• Close ratio first gear that provides less RPM drop when shifting Uses Touring trapdoor (no ear) to clear oil filler spout.
from first to second gear. Evo style gaskets.
• Newer style roller detent follower shaft cam assembly for a
smoother and positive shifting engagement. Twin Cam Fitment:
• Forge 6160 aluminum trapdoor wrinkle black or chrome finish. Fits Twin Cam Touring models 99-06, Dyna Glide models 99-05 and
• Thicker gears to withstand higher horsepower/torque motors. Softail models 00-06.
• 8620H high nickel content chrome-moly steel gears for longer 658304 Black trapdoor assembly. $949.99
durability. Chrome trapdoor assembly. $949.99
• Precision machined, investment cast steel shift forks. 658305
• Fully CNC machined steel shift drum. Uses Touring trapdoor (no ear) to clear oil filler spout.
• Back-cut gear dogs and leading ramp of the dog pockets for a 6-speed shift paw assembly & shaft bushing with tool.
smooth and accurate engagement. Twin Cam style gaskets.
• Pre-assembled gear set on the trapdoor for easier installation. Note: Installation on 94-Up models with electronic speedometers will require speedometer
• Bolts right into Harley OEM 5-speed transmission cases 90-06 and recalibration. Use CC #690710 and special neutral switch (CC #30439) on 1998 and newer
models. Also, when running an electronic speedo, the purchase of a speedo pickup sensor
most aftermarket case too. plate (CC #30438) is required.
• Includes transmission gaskets and seals. M658300
Gear ratios as follows:
• First gear 2.93:1
• Second gear 2.20:1
• Third gear 1.60:1
• Four gear 1.23:1
• Fifth gear 1.00:1
• Sixth gear overdrive .88:1
*Prices shown are suggested retail prices only. Actual retail prices are determined by each dealer and may vary.
2.06 All parts are sold each unless otherwise noted. Retail prices may reflect an each quantity. Please see Cautionary Information in back of catalog.
