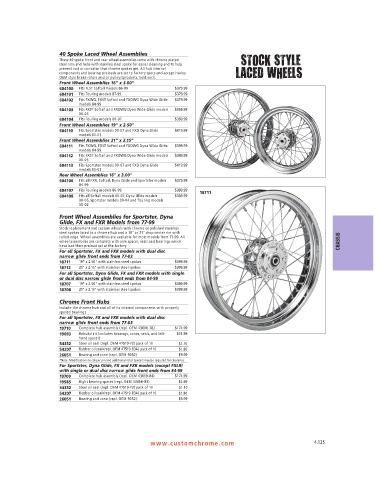

P. 377
40 Spoke Laced Wheel Assemblies
These 40 spoke front and rear wheel assemblies come with chrome plated STOCK STYLE
steel rims and hubs with stainless steel spoke for easier cleaning and to help
prevent rust or corrosion that chrome spokes get. All hub internal
components and bearing preloads are set to factory specs and accept Harley LACED WHEELS
OEM style brake rotors and or pulley/sprockets. Sold each.
Front Wheel Assemblies 16” x 3.00”
604100 Fits FLST Softail models 86-99 $379.99
604101 Fits Touring models 87-99 $379.99
604102 Fits FXWG, FXST Softail and FXDWG Dyna Wide Glide $379.99
models 84-99
604103 Fits FXST Softail and FXDWG Dyna Wide Glide models $369.99
00-05
604104 Fits Touring models 00-07 $369.99
Front Wheel Assemblies 19” x 2.50”
604110 Fits Sportster models 00-07 and FXD Dyna Glide $419.99
models 00-03
Front Wheel Assemblies 21” x 2.15”
604111 Fits FXWG, FXST Softail and FXDWG Dyna Wide Glide $399.99
models 84-99
604112 Fits FXST Softail and FXDWG Dyna Wide Glide models $389.99
00-05
604113 Fits Sportster models 00-07 and FXD Dyna Glide $419.99
models 00-03
Rear Wheel Assemblies 16” x 3.00”
604106 Fits all FXR, Softail, Dyna Glide and Sportster models $379.99
84-99
604107 Fits Touring models 86-99 $389.99 18711
604108 Fits all Softail models 00-07, Dyna Glide models $369.99
00-05, Sportster models 00-04 and Touring models
00-02
M604100
Front Wheel Assemblies for Sportster, Dyna
Glide, FX and FXR Models from 77-99
Stock replacement and custom wheels with chrome or polished stainless
steel spokes laced to a chrome hub and a 19" or 21" drop center rim with
rolled edge. Wheel assemblies are available for most models from 77-99. All
wheel assemblies are complete with axle spacer, seals and bearings which CHASSIS
have had their preload set at the factory.
For all Sportster, FX and FXR models with dual disc
narrow glide front ends from 77-83
18711 19" x 2.50" with stainless steel spokes $399.99
18712 21" x 2.15" with stainless steel spokes $399.99
For all Sportster, Dyna Glide, FX and FXR models with single
or dual disc narrow glide front ends from 84-99
18707 19" x 2.50" with stainless steel spokes $399.99
18708 21" x 2.15" with stainless steel spokes $399.99
M18711
Chrome Front Hubs
Include the chrome hub and all of its internal components with properly
spaced bearings.
For all Sportster, FX and FXR models with dual disc
narrow glide front ends from 77-83
19710 Complete hub assembly (repl. OEM 43600-78) $174.99
19693 Rebuild kit (includes bearings, cones, seals, and left- $31.99
hand spacer)
54332 Steel oil seal (repl. OEM 47519-72) pack of 10 $1.10
54207 Rubber oil seal (repl. OEM 47519-83A) pack of 10 $1.80
26051 Bearing and cone (repl. OEM 9052) $9.99
*Note: Modifications to caliper pin and additional rotor spacers may be required for clearance.
For Sportster, Dyna Glide, FX and FXR models (except FXLR)
with single or dual disc narrow glide front ends from 84-99
19709 Complete hub assembly (repl. OEM 43619-84) $174.99
19585 Right bearing spacer (repl. OEM 43358-83) $4.99
54332 Steel oil seal (repl. OEM 47519-72) pack of 10 $1.10
54207 Rubber oil seal (repl. OEM 47519-83A) pack of 10 $1.80
26051 Bearing and cone (repl. OEM 9052) $9.99
M 19710
