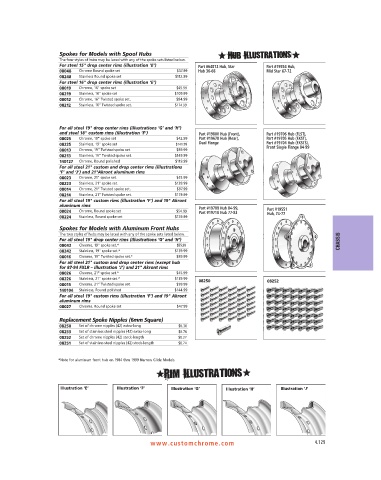

P. 381
Spokes for Models with Spool Hubs Hub Illustrations
The four styles of hubs may be laced with any of the spoke sets listed below.
For steel 15" drop center rims (illustration ‘E’) Part #64012 Hub, Star Part #19554 Hub,
08048 Chrome Round spoke set $37.99 Hub 36-66 Mid Star 67-72
08248 Stainless Round spoke set $112.99
For steel 16" drop center rims (illustration ‘E’)
08019 Chrome, 16" spoke set $49.99
08219 Stainless, 16" spoke set $109.99
08012 Chrome, 16” Twisted spoke set. $84.99
08212 Stainless, 16” Twisted spoke set. $174.99
For all steel 19" drop center rims (illustrations ‘G’ and ‘H’)
and steel 18" custom rims (illustration ‘F’) Part #19800 Hub (Front), Part #19706 Hub (FLST),
08025 Chrome, 19" spoke set $42.99 Part #19678 Hub (Rear), Part #19705 Hub (FXST),
08225 Stainless, 19" spoke set $141.99 Dual Flange Part #19704 Hub (FXSTS),
Front Single Flange 84-99
08013 Chrome, 19” Twisted spoke set. $89.99
08213 Stainless, 19” Twisted spoke set. $149.99
140127 Chrome, Round polished $119.99
For all steel 21" custom and drop center rims (illustrations
‘F’ and ‘J’) and 21"Akront aluminum rims
08023 Chrome, 21" spoke set. $45.99
08223 Stainless, 21" spoke set. $139.99
08014 Chrome, 21” Twisted spoke set. $97.99
08214 Stainless, 21” Twisted spoke set. $179.99
For all steel 19" custom rims (illustration ‘F’) and 19" Akront
aluminum rims Part #19709 Hub 84-99,
08024 Chrome, Round spoke set $54.99 Part #19710 Hub 77-83 Part #19551
Hub, 74-77
08224 Stainless, Round spoke set $129.99
M08248
Spokes for Models with Aluminum Front Hubs
The two styles of hubs may be laced with any of the spoke sets listed below.
For all steel 19" drop center rims (illustrations ‘G’ and ‘H’) CHASSIS
08042 Chrome, 19" spoke set.* $55.99
08242 Stainless, 19" spoke set.* $139.99
08016 Chrome, 19” Twisted spoke set.* $89.99
For all steel 21" custom and drop center rims (except hub
for 87-94 FXLR – illustration ‘J’) and 21" Akront rims
08026 Chrome, 21" spoke set.* $45.99
08226 Stainless, 21" spoke set.* $139.99 08250 08252
08015 Chrome, 21” Twisted spoke set. $99.99
140104 Stainless, Round polished $144.99
For all steel 19" custom rims (illustration ‘F’) and 19" Akront
aluminum rims
08027 Chrome, Round spoke set $47.99
M08042
Replacement Spoke Nipples (6mm Square)
08250 Set of chrome nipples (42) extra-long $0.30
08253 Set of stainless steel nipples (42) extra-long $0.76
08252 Set of chrome nipples (42) stock-length $0.27
08251 Set of stainless steel nipples (42) stock-length $0.74
M08250
*Note for aluminum front hub on 1984 thru 1999 Narrow Glide Models.
Rim Illustrations
Illustration ‘E’ Illustration ‘F’ Illustration ‘G’ Illustration ‘H’ Illustration ‘J’
