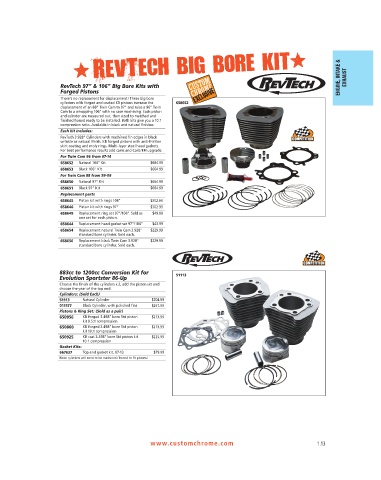

Page 25 - Custom Chrome Catalog

RevTech big bore kit

RevTech 97” & 106” Big Bore Kits with ENGINE, INTAKE & EXHAUST
Forged Pistons
There’s no replacement for displacement! These big bore
cylinders with forged and coated KB pistons increase the 658652
displacement of an 88” Twin Cam to 97” and raise a 96” Twin
Cam to a whopping 106” with no case machining. Each piston
and cylinder are measured out, then sized to matched and
finished honed ready to be installed. Both kits give you a 10:1
compression ratio. Available in black and natural finishes.
Each kit includes:
RevTech 3.928” Cylinders with machined fin edges in black
wrinkle or natural finish. KB forged pistons with anti-friction
skirt coating and moly rings. Multi-layer steel head gaskets.
For best performance results add cams and Carb/EFI upgrade.
For Twin Cam 96 from 07-14
658652 Natural 106” Kit $664.99
658653 Black 106” Kit $664.99
For Twin Cam 88 from 99-06
658650 Natural 97” Kit $664.99
658651 Black 97” Kit $664.99
Replacement parts
658645 Piston kit with rings 106” $302.99
658646 Piston kit with rings 97” $302.99
658649 Replacement ring set 97”/106”. Sold as $49.99
one set for each piston.
658644 Replacement head gasket set 97”/106” $43.99
658654 Replacement natural Twin Cam 3.928" $229.99
standard bore cylinder. Sold each.
658656 Replacement black Twin Cam 3.928" $229.99
standard bore cylinder. Sold each.
M658652

883cc to 1200cc Conversion Kit for
Evolution Sportster 86-Up 51113
Choose the finish of the cylinders x 2, add the piston set and
choose the year of the top end.
Cylinders: (Sold Each)
51113 Natural Cylinder $204.99
011177 Black Cylinder, with polished fins $267.99
Pistons & Ring Set: (Sold as a pair)
650956 KB forged 3.498” bore Std piston $273.99
kit 9.5:1 compression
650860 KB forged 3.498” bore Std piston $273.99
kit 10:1 compression
650925 KB cast 3.498” bore Std piston kit $225.99
10:1 compression
Gasket Kits:
667637 Top end gasket kit, 07-13 $79.99
Note: cylinders will need to be machined / honed to fit pistons!
