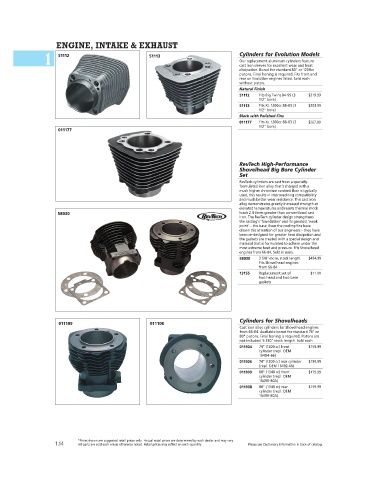

Page 26 - Custom Chrome Catalog

ENGINE, INTAKE & EXHAUST
1 51112 51113 Cylinders for Evolution Models
Our replacement aluminum cylinders feature
cast iron sleeves for excellent wear and heat
dissipation. Bored for standard 80" or 1200cc
pistons. Final honing is required. Fits front and
rear on Evolution engines listed. Sold each
without piston.
Natural Finish
51112 Fits Big Twins 84-99 (3 $219.99
1/2" bore)
51113 Fits XL 1200cc 88-03 (3 $204.99
1/2" bore)
Black with Polished Fins
011177 Fits XL 1200cc 88-03 (3 $267.99
1/2" bore)
011177

RevTech High-Performance
Shovelhead Big Bore Cylinder
Set
RevTech cylinders are cast from a specially-
formulated iron alloy that’s charged with a
much higher chromium content than is typically
used, this results in improved ring compatibility
and much better wear resistance. This cast iron
alloy demonstrates greatly increased strength at
elevated temperatures and resists thermal shock
58030 loads 2.4 times greater than conventional cast
iron. The RevTech cylinder design strengthens
the casting’s ‘foundation’ and its greatest ‘weak
point’... the base. Even the cooling fins have
drawn the attention of our engineers – they have
been re-designed for greater heat dissipation and
the gaskets are created with a special design and
material that is formulated to adhere under the
most extreme heat and pressure. Fits Shovelhead
engines from 66-84. Sold in pairs.
58030 3 5/8"-bore, stock length. $454.99
Fits Shovelhead engines
from 66-84
13155 Replacement set of $11.99
two head and two base
gaskets

Cylinders for Shovelheads
011109 011108
Cast iron alloy cylinders for Shovelhead engines
from 66-84. Available bored for standard 74" or
80" pistons. Final honing is required. Pistons are
not included. 5.330" stock length. Sold each.
011104 74" (1200 cc) front $159.99
cylinder (repl. OEM
16484-66)
011106 74" (1200 cc) rear cylinder $159.99
(repl. OEM 16492-66)
011109 80" (1340 cc) front $179.99
cylinder (repl. OEM
16498-80A)
011108 80" (1340 cc) rear $159.99
cylinder (repl. OEM
16499-80A)

*Prices shown are suggested retail prices only. Actual retail prices are determined by each dealer and may vary.
1.14 All parts are sold each unless otherwise noted. Retail prices may reflect an each quantity. Please see Cautionary Information in back of catalog.
