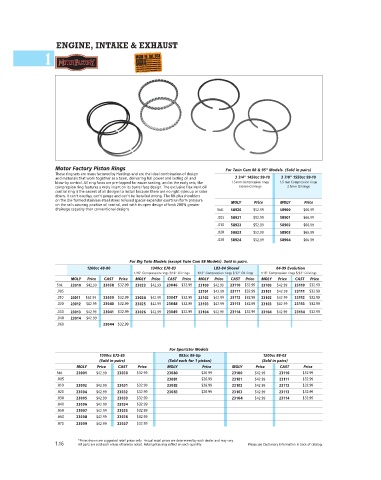

Page 28 - Custom Chrome Catalog

ENGINE, INTAKE & EXHAUST
1

Motor Factory Piston Rings For Twin Cam 88 & 95“ Models. (Sold in pairs)
These ring sets are manufactured by Hastings and are the ideal combination of design
and materials that work together as a team, delivering full power and lasting oil and 3 3/4" 1450cc 99-10 3 7/8" 1550cc 99-10
blow-by control. All ring faces are pre-lapped for easier seating, and in the moly sets, the 1.5 mm Compression rings 1.5 mm Compression rings
compression ring features a moly insert on its barrel face design. The exclusive Flex-Vent oil 3.0mm Oil rings 2.5mm Oil rings
control ring is the easiest of all designs to install because there are no right sides up or sides
down. It can’t overlap, can’t gouge and can’t be installed wrong. The 80-plus shoulders
on the die-formed stainless-steel stress relieved spacer-expander exerts uniform pressure MOLY Price MOLY Price
on the rails assuring positive oil control, and with its open design affords 200% greater
drainage capacity than conventional designs. Std. 58920 $52.99 58900 $66.99
.005 58921 $52.99 58901 $66.99
.010 58922 $52.99 58902 $66.99
.020 58923 $52.99 58903 $66.99
.030 58924 $52.99 58904 $66.99
M58920

For Big Twin Models (except Twin Cam 88 Models). Sold in pairs.
1200cc 48-80 1340cc E78-83 L83-84 Shovel 84-99 Evolution
1/16" Compression rings 3/16" Oil rings 1/16" Compression rings 5/32" Oil rings 1/16" Compression rings 5/32" Oil rings
MOLY Price CAST Price MOLY Price CAST Price MOLY Price CAST Price MOLY Price CAST Price
Std. 23010 $42.99 23038 $32.99 23023 $42.99 23046 $32.99 23100 $42.99 23110 $32.99 23100 $42.99 23110 $32.99
.005 23101 $42.99 23111 $32.99 23101 $42.99 23111 $32.99
.010 23011 $42.99 23039 $32.99 23024 $42.99 23047 $32.99 23102 $42.99 23112 $32.99 23102 $42.99 23112 $32.99
.020 23012 $42.99 23040 $32.99 23025 $42.99 23048 $32.99 23103 $42.99 23113 $32.99 23103 $42.99 23113 $32.99
.030 23013 $42.99 23041 $32.99 23026 $42.99 23049 $32.99 23104 $42.99 23114 $32.99 23104 $42.99 23114 $32.99
.040 23014 $42.99
.060 23044 $32.99
M23010

For Sportster Models
1000cc E72-85 883cc 86-Up 1200cc 88-03
(Sold in pairs) (Sold each for 1 piston) (Sold in pairs)
MOLY Price CAST Price MOLY Price MOLY Price CAST Price
Std. 23001 $42.99 23030 $32.99 23080 $26.99 23100 $42.99 23110 $32.99
.005 23081 $26.99 23101 $42.99 23111 $32.99
.010 23002 $42.99 23031 $32.99 23082 $26.99 23102 $42.99 23112 $32.99
.020 23004 $42.99 23032 $32.99 23083 $26.99 23103 $42.99 23113 $32.99
.030 23005 $42.99 23033 $32.99 23104 $42.99 23114 $32.99
.040 23006 $42.99 23034 $32.99
.050 23007 $42.99 23035 $32.99
.060 23008 $42.99 23036 $32.99
.070 23009 $42.99 23037 $32.99

*Prices shown are suggested retail prices only. Actual retail prices are determined by each dealer and may vary.
1.16 All parts are sold each unless otherwise noted. Retail prices may reflect an each quantity. Please see Cautionary Information in back of catalog.
