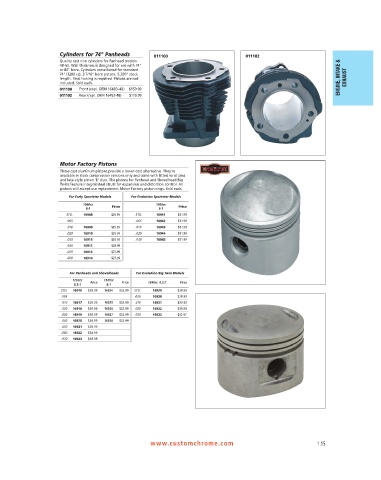

Page 27 - Custom Chrome Catalog

Cylinders for 74" Panheads 011100 011102
Quality cast iron cylinders for Panhead models
48-65. Wall thickness is designed for use with 74"
or 80" bore. Cylinders come bored for standard
74" (1200 cc), 3 7/16" bore pistons. 5.330" stock
length. Final honing is required. Pistons are not ENGINE, INTAKE & EXHAUST
included. Sold each.
011100 Front (repl. OEM 16483-48) $159.99
011102 Rear (repl. OEM 16492-48) $179.99

Motor Factory Pistons
These cast aluminum pistons provide a lower-cost alternative. They’re
available in stock compression versions only and come with fitted wrist pins
and late-style piston ‘E’ clips. The pistons for Panhead and Shovelhead Big
Twins feature integral steel struts for expansion and distortion control. All
pistons will accept our replacement Motor Factory piston rings. Sold each.
For Early Sportster Models For Evolution Sportster Models
1000cc 1200cc
9:1 Price 9:1 Price
STD. 16908 $29.99 STD. 16941 $31.99
.005 .005 16942 $31.99
.010 16909 $29.99 .010 16943 $31.99
.020 16910 $29.99 .020 16944 $31.99
.030 16911 $29.99 .030 16945 $31.99
.040 16912 $28.99
.050 16913 $27.99
.060 16914 $27.99

For Panheads and Shovelheads For Evolution Big Twin Models
1200cc Price 1340cc Price 1340cc 8.5:1 Price
8.5:1 8:1
STD. 16916 $30.99 16924 $32.99 STD. 16929 $30.99
.005 .005 16930 $30.99
.010 16917 $30.99 16925 $32.99 .010 16931 $29.99
.020 16918 $30.99 16926 $32.99 .020 16932 $30.99
.030 16919 $30.99 16927 $32.99 .030 16933 $32.97
.040 16920 $30.99 16928 $32.99
.050 16921 $30.99
.060 16922 $30.99
.070 16923 $30.99
M16908

www.customchrome.com 1.15
