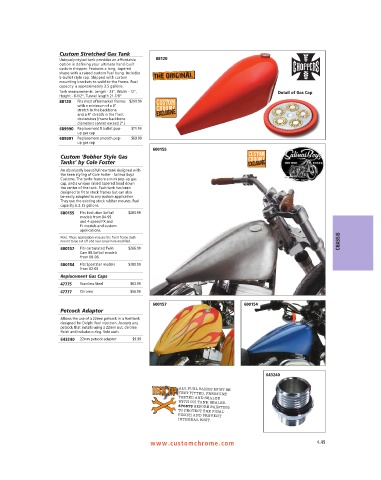

Page 301 - Custom Chrome Catalog

Custom Stretched Gas Tank
Uniquely-styled tank provides an affordable 88120
option in defining your ultimate hand-built
custom chopper. Features a long, tapered
shape with a raised custom fuel bung. Includes
5-bullet style cap. Shipped with custom
mounting brackets to weld to the frame. Fuel
capacity is approximately 3.5 gallons.
Tank measurements: Length - 23”, Width - 12”, Detail of Gas Cap
Height - 8-1/2”, Tunnel length 21-7/8”
88120 Fits most aftermarket frames $299.99
with a minimum of a 3"
stretch in the backbone
and a 4" stretch in the front
downtubes (frame backbone
diameters cannot exceed 2")
689990 Replacement 5 bullet pop- $71.99
up gas cap
689991 Replacement smooth pop- $69.99
up gas cap
M88120 600155
Custom ‘Bobber Style Gas
Tanks’ by Cole Foster
An absolutely beautiful new tank designed with
the keen styling of Cole Foster - Salinas Boyz
Customs. The tanks feature a mini pop-up gas
cap, and a unique raised tapered bead down
the center of the tank. Each tank has been
designed to fit to stock frames but can also
be easily adapted to any custom application.
They use the existing stock rubber mounts. Fuel
capacity is 2.35 gallons.
600155 Fits Evolution Softail $283.99
models from 84-99
and 4-speed FX and
FL models and custom
applications.
Note: These applications require the front frame dash
mount to be cut off and rear screw hole modified. CHASSIS
600157 Fits carburated Twin $266.99
Cam 88 Softail models
from 00-06
600154 Fits Sportster models $280.99
from 82-03
Replacement Gas Caps
47775 Stainless Steel $63.99
47777 Chrome $56.99
M600155
600157 600154
Petcock Adaptor
Allows the use of a 22mm petcock in a fuel tank
designed for Delphi fuel injection. Accepts any
petcock that installs using a 22mm nut, chrome
finish and includes o-ring. Sold each.
643240 22mm petcock adaptor $9.99
M643240

643240

ALL FUEL TANKS MUST BE
TEST FITTED, PRESSURE
TESTED AND SEALED
WITH CCI TANK SEALER
670675 BEFORE PAINTING
TO PROTECT THE FINAL
FINISH AND PREVENT
INTERNAL RUST.

www.customchrome.com 4.49
