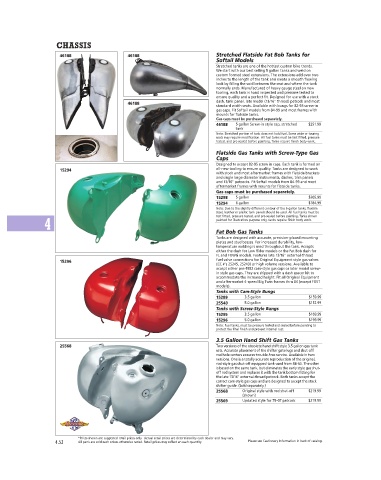

Page 304 - Custom Chrome Catalog

CHASSIS

46188 46188 Stretched Flatside Fat Bob Tanks for
Softail Models
Stretched tanks are one of the hottest custom bike trends.
We start with our best selling 5 gallon tanks and weld on
custom formed steel extensions. The extensions add over two
inches to the length of the tank and create a smooth flowing
look by filling the void between the seat and where the tank
normally ends. Manufactured of heavy gauge steel on new
tooling, each tank is hand inspected and pressure tested to
ensure quality and a perfect fit. Designed for use with a stock
46188 dash, tank panel, late model (13/16" thread) petcock and most
standard width seats. Available with bungs for 82-95 screw-in
gas caps. Fit Softail models from 84-99 and most frames with
mounts for flatside tanks.
Gas caps must be purchased separately.
46188 5 gallon Screw-in style cap, stretched $251.99
tank
Note: Stretched portion of tank does not hold fuel. Some wide or touring
seats may require modification. All fuel tanks must be test fitted, pressure
tested, and pre-sealed before painting. Tanks require finish body work.
M46188
Flatside Gas Tanks with Screw-Type Gas
Caps
Designed to accept 82-95 screw in caps. Each tank is formed on
15294 all-new tooling to ensure quality. Tanks are designed to work
with stock and most aftermarket frames with flatside brackets
and single large diameter instruments, dashes, trim panels
and 13/16" petcocks. Fit Softail models from 84-99 and most
aftermarket frames with mounts for flatside tanks.
Gas caps must be purchased separately.
15298 5 gallon $205.99
15294 6 gallon $184.99
Note: Due to the slightly different contour of the 6-gallon tanks, flexible
steel, leather or plastic tank panels should be used. All fuel tanks must be
test fitted, pressure tested, and pre-sealed before painting. Tanks shown
4 painted for illustration purpose only, tanks require finish body work.
M15297
Fat Bob Gas Tanks
Tanks are designed with accurate, precision-placed mounting
plates and stud bosses. For increased durability, low-
temperature welding is used throughout the tank. Accepts
either the dash for Low Rider models or the Fat Bob dash for
FL and FXWG models. Features late 13/16" external-thread
15296 fuel valve connections for Original Equipment style gas valves
(CC #’s 25245, 25243) or high volume versions. Available to
accept either pre-1982 cam-style gas caps or later model screw-
in style gas caps. They are shipped with a dash spacer kit to
accommodate the increased height. Fit all Original Equipment
and aftermarket 4-speed Big Twin frames thru 84 (except FXST
models).
Tanks with Cam-Style Bungs
15289 3.5 gallon $159.99
25549 5.0 gallon $152.99
Tanks with Screw-Style Bungs
15295 3.5 gallon $169.99
15296 5.0 gallon $199.99
Note: Fuel tanks, must be pressure tested and sealed before painting to
protect the final finish and prevent internal rust.
M15289
3.5 Gallon Hand Shift Gas Tanks
25568 Two versions of the obsolete hand shift style 3.5 gallon gas tank
sets. Accurate placement of the shifter gate lugs and shut-off
rod hole centers ensures trouble-free service. Available in two
versions. One is a totally accurate reproduction of the original,
rod-style gas shut-off equipped tank used from 48-65. The other
is based on the same tank, but eliminates the early style gas shut-
off rod system and replaces it with the tank bottom fitting for
the late 13/16" external-thread petcock. Both tanks accept the
correct cam-style gas caps and are designed to accept the stock
shifter guide. (Sold separately.)
25568 Original style with rod shut-off $219.99
(shown)
25569 Updated style for 75-07 petcock $219.99
M25568

*Prices shown are suggested retail prices only. Actual retail prices are determined by each dealer and may vary.
4.52 All parts are sold each unless otherwise noted. Retail prices may reflect an each quantity. Please see Cautionary Information in back of catalog.
