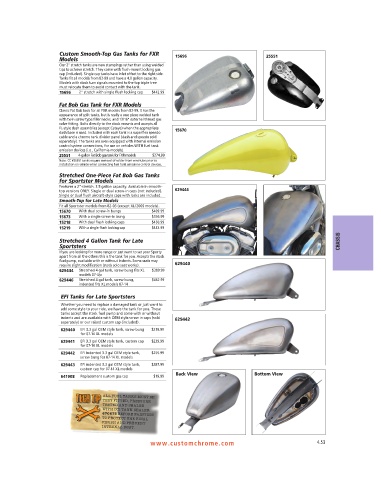

Page 305 - Custom Chrome Catalog

Custom Smooth-Top Gas Tanks for FXR 15696
Models 25551
Our 2" stretch tanks are new stampings rather than using welded
tips to achieve stretch. They come with flush-mount locking gas
cap (included). Single cap tanks have inlet offset to the right side.
Tanks fit all models from 82-99 and have a 4.0 gallon capacity.
Models with stock turn signals mounted to the top triple tree
must relocate them to avoid contact with the tank.
15696 2" stretch with single flush locking cap $442.99
M15696
Fat Bob Gas Tank for FXR Models
Classic Fat Bob look for all FXR models from 82-99. It has the
appearance of split tanks, but is really a one piece welded tank
with twin screw type filler necks, and 13/16" external thread gas
valve fitting. Bolts directly to the stock mounts and accepts all
FL-style dash assemblies (except Cateye) when the appropriate 15670
dash base is used. Included with each tank is a superflex speedo
cable and a chrome tank divider panel (dash and speedo sold
separately). The tanks are even equipped with internal emission
control system connections, for use on vehicles WITH fuel tank
emission devices (i.e., California models).
25551 4-gallon Fat Bob gas tank for FXR models $274.99
Note: CC #25551 tanks require removal of solder from vent tube prior to
installation on vehicle when connecting fuel tank emissions control devices.
M25551
Stretched One-Piece Fat Bob Gas Tanks
for Sportster Models
Features a 2"-stretch. 3.5 gallon capacity. Available in smooth-
top versions ONLY. Single or dual screw-in caps (not included). 629446
Single or dual flush aircraft-style caps with locks are included.
Smooth-Top for Late Models
Fit all Sportster models from 82-03 (except XL1200S models).
15670 With dual screw-in bungs $409.99
15673 With a single screw-in bung $356.99
15218 With dual flush locking caps $450.99
15219 With a single flush locking cap $433.99
M15670
Stretched 4 Gallon Tank for Late CHASSIS
Sportsters
If you are looking for more range or just want to set your Sporty
apart from all the others this is the tank for you. Accepts the stock
fuel pump, available with or without indents. Some seats may
require slight modification (stock solo seat works). 629440
629444 Stretched 4 gal tank, screw bung fits XL $389.99
models 07-Up
629446 Stretched 4 gal tank, screw bung, $462.99
indented fits XL models 07-14
M629444
EFI Tanks for Late Sportsters
Whether you need to replace a damaged tank or just want to
add some style to your ride, we have the tank for you. These
tanks accept the stock fuel pump and come with or without
indents and are available with OEM style screw in caps (sold 629442
separately) or our raised custom cap (included).
629440 EFI 3.3 gal OEM style tank, screw bung $219.99
for 07-14 XL models
629441 EFI 3.3 gal OEM style tank, custom cap $239.99
for 07-14 XL models
629442 EFI indented 3.3 gal OEM style tank, $255.99
screw bung for 07-14 XL models
629443 EFI indented 3.3 gal OEM style tank, $287.99
custom cap for 07-14 XL models
Back View Bottom View
641908 Replacement custom gas cap $19.99
M629440

ALL FUEL TANKS MUST BE
TEST FITTED, PRESSURE
TESTED AND SEALED
WITH CCI TANK SEALER
670675 BEFORE PAINTING
TO PROTECT THE FINAL
FINISH AND PREVENT
INTERNAL RUST.

www.customchrome.com 4.53
