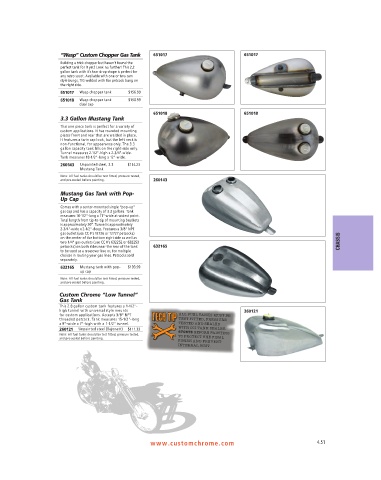

Page 303 - Custom Chrome Catalog

“Wasp” Custom Chopper Gas Tank 651017 651017
Building a trick chopper but haven’t found the
perfect tank for it yet? Look no further! This 2.2
gallon tank with it’s tear drop shape is perfect for
any retro scoot. Available with one or two cam
style bungs, TIG welded with the petcock bung on
the right side.
651017 Wasp chopper tank $156.99
651018 Wasp chopper tank $150.99
dual cap
M651017 651018 651018
3.3 Gallon Mustang Tank
This one piece tank is perfect for a variety of
custom applications. It has rounded mounting
plates front and rear that are welded in place.
It features a twin cap look, but the left neck is
non-functional, for appearance only. The 3.3
gallon capacity tank fills on the right-side only.
Tunnel measures 2-1/2"-high x 2-3/4"-wide.
Tank measures 18-1/2"-long x 12"-wide.
260143 Unpainted steel, 3.3 $114.23
Mustang Tank
Note: All fuel tanks should be test fitted, pressure tested,
and pre-sealed before painting. 260143
M260143
Mustang Gas Tank with Pop-
Up Cap
Comes with a center-mounted single “pop-up”
gas cap and has a capacity of 3.3 gallons. Tank
measures 16-1/2"-long x 11"-wide at widest point.
Total length from tip-to-tip of mounting brackets
is approximately 20". Tunnel is approximately
2-3/4"-wide x 2-1/2"-deep. Features a 3/8" NPT
gas outlet (use CC #’s 12726 or 12727 petcocks)
on the center of the bottom right side as well as
two 1/4" gas outlets (use CC #’s 632252 or 632253 CHASSIS
petcocks) on both sides near the rear of the tank 632165
to be used as a crossover line or, for multiple
choices in routing your gas lines. Petcocks sold
separately.
632165 Mustang tank with pop- $193.99
up cap
Note: All fuel tanks should be test fitted, pressure tested,
and pre-sealed before painting.
M632165
Custom Chrome “Low Tunnel”
Gas Tank
This 2.8 gallon custom tank features a 1-1/2"-
high tunnel with universal style mounts 260121
for custom applications. Accepts 3/8" NPT ALL FUEL TANKS MUST BE
threaded petcock. Tank measures 15-1/2"-long TEST FITTED, PRESSURE
x 9"-wide x 7"-high with a 1-1/2" tunnel. TESTED AND SEALED
260121 Unpainted steel (Bajonett) $111.33 WITH CCI TANK SEALER
Note: All fuel tanks should be test fitted, pressure tested, 670675 BEFORE PAINTING
and pre-sealed before painting. TO PROTECT THE FINAL
FINISH AND PREVENT
M260121 INTERNAL RUST.

www.customchrome.com 4.51
