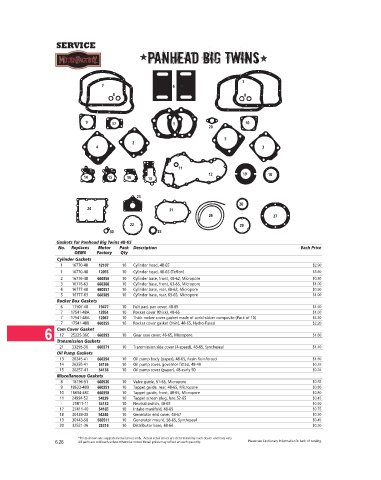

Page 496 - Custom Chrome Catalog
P. 496
SERVICE
Panhead Big Twins
7
7 6
8 8
9 17 1 10
20
5
2
4 3
11
12 19 18
14 15 16 13
23
28
24 21
26 27
22 29
30 25
Gaskets for Panhead Big Twins 48-65
No. Replaces Motor Pack Description Each Price
OEM# Factory Qty
Cylinder Gaskets
1 16770-48 12107 10 Cylinder head, 48-65 $2.90
1 16770-48 12055 10 Cylinder head, 48-65 (Teflon) $5.60
2 16776-48 660356 10 Cylinder base, front, 48-62, Micropore $0.80
3 16776-63 660388 10 Cylinder base, front, 63-65, Micropore $1.00
4 16777-48 660357 10 Cylinder base, rear, 48-62, Micropore $0.90
5 16777-63 660389 10 Cylinder base, rear, 63-65, Micropore $1.00
Rocker Box Gaskets
6 17507-48 19477 10 Felt pad, pan cover, 48-65 $1.60
7 17541-48A 12054 10 Rocker cover (thick), 48-65 $1.60
7 17541-48A 12067 10 Thick rocker cover gasket made of cork/rubber composite (Pack of 10) $4.30
7 17541-48B 660355 10 Rocker cover gasket (thin), 48-65, Hydro-Fused $2.20
6 Cam Cover Gasket 660393 10 Gear case cover, 48-65, Micropore $1.80
12
25225-36C
Transmission Gaskets
21 33295-36 660371 10 Transmission side cover (4-speed), 48-65, Syntheseal $1.40
Oil Pump Gaskets
13 26245-41 660394 10 Oil pump body (paper), 48-65, Resin Reinforced $1.50
14 26255-41 54136 10 Oil pump cover, governor fitted, 48-49 $0.35
15 26257-41 54138 10 Oil pump cover (paper), 48-early 50 $0.35
Miscellaneous Gaskets
8 18196-51 660520 10 Valve guide, 51-65, Micropore $0.55
9 18633-48D 660351 10 Tappet guide, rear, 48-65, Micropore $0.80
10 18634-48C 660358 10 Tappet guide, front, 48-65, Micropore $0.80
11 24994-52 54239 10 Tappet screen plug, late 52-65 $0.45
- 25811-11 54132 10 Neutral switch, 48-65 $0.40
17 27411-40 54165 10 Intake manifold, 48-65 $0.75
18 30138-30 54240 10 Generator end cover, 48-57 $0.30
19 30143-58 660511 10 Generator mount, 58-65, Syntheseal $0.45
20 32521-36 25314 10 Distributor base, 48-64 $0.30
M 12107
*Prices shown are suggested retail prices only. Actual retail prices are determined by each dealer and may vary.
6.26 All parts are sold each unless otherwise noted. Retail prices may reflect an each quantity. Please see Cautionary Information in back of catalog.
